Wall Mount Self-Clean Blast Gate – 2-1/2″

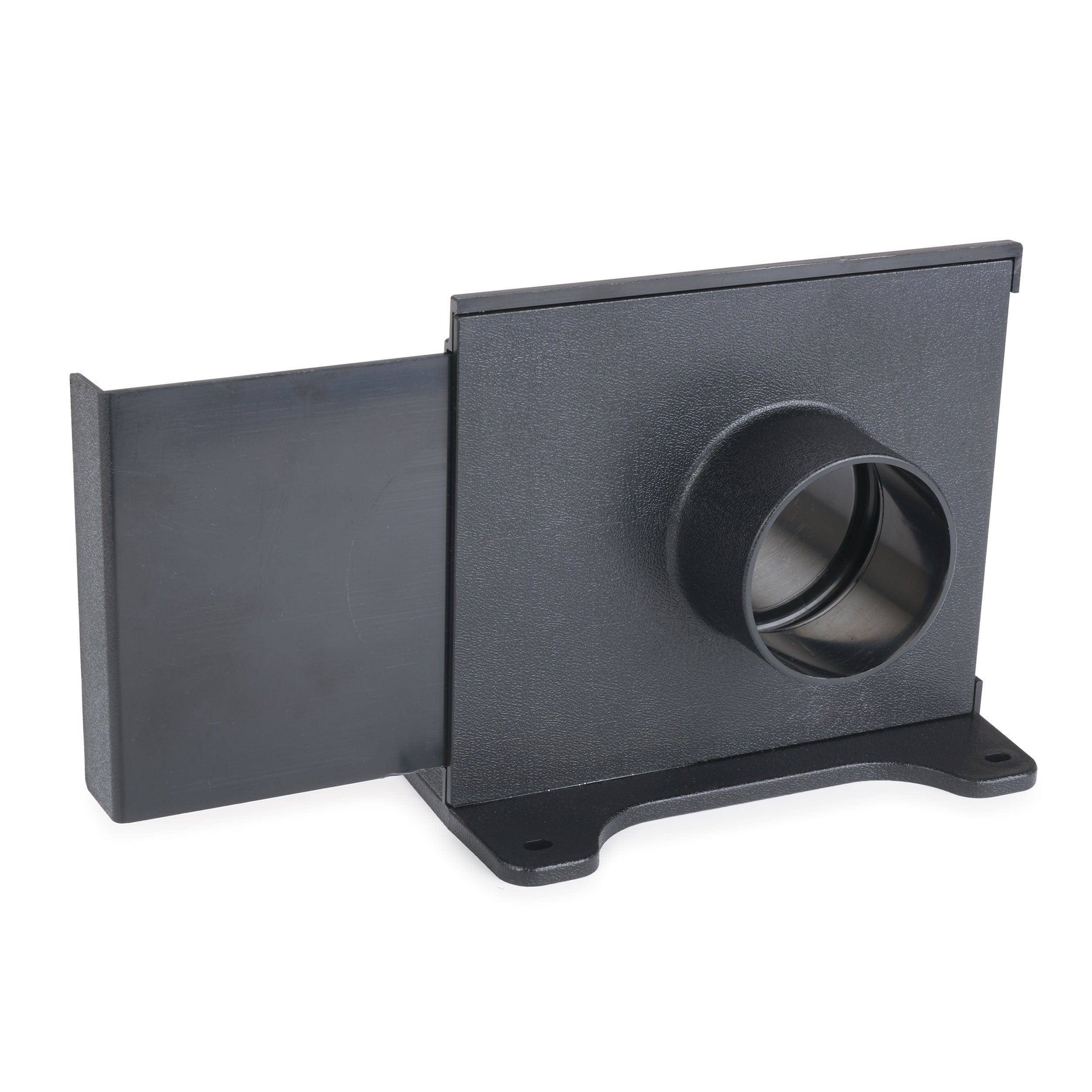

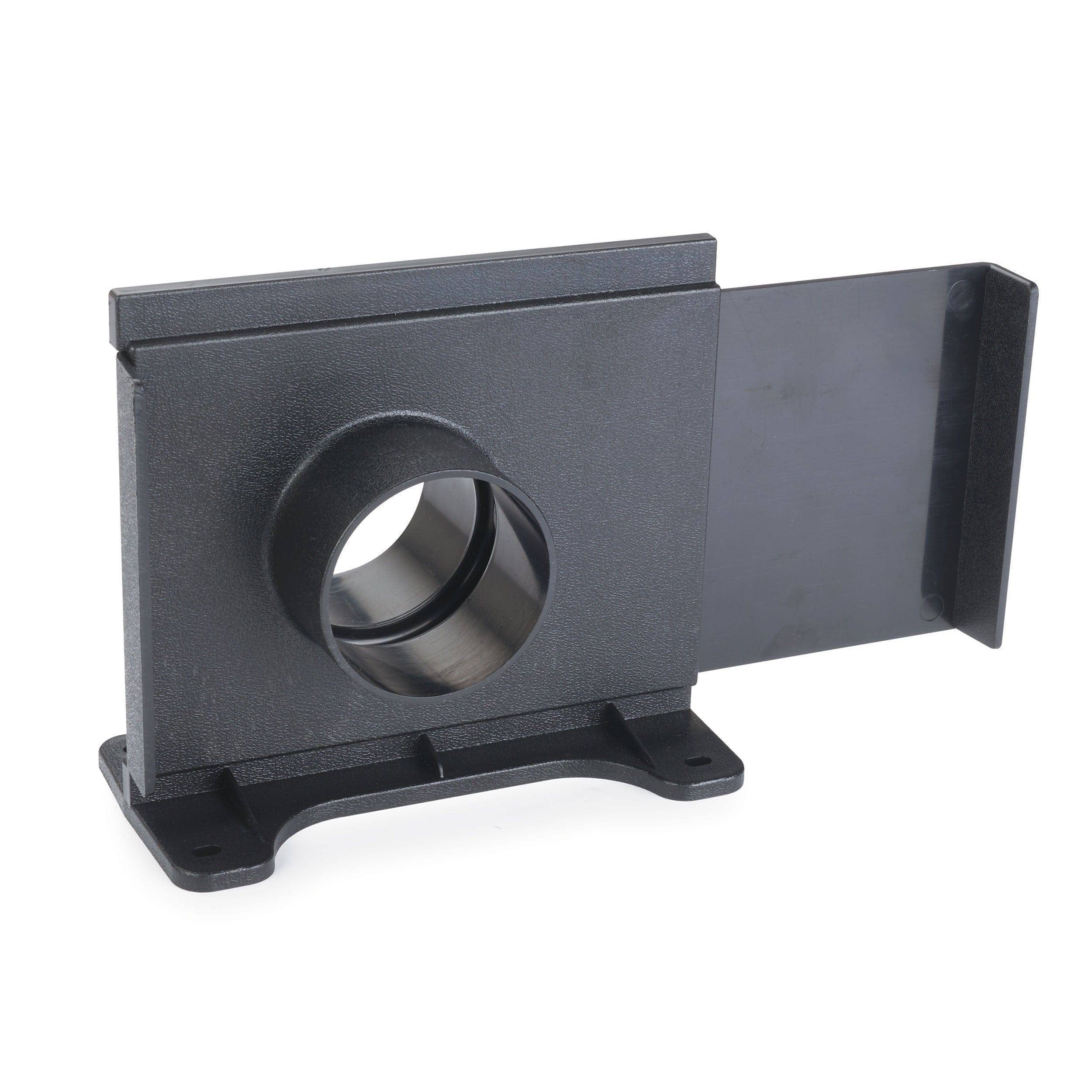

Wall mount feature on this WoodRiver® Dust Connection® Self-Clean Blast Gate Dust Collection Fitting provides a large, 6-1/2″ x 3-1/4″ flange with mounting holes to attach the fitting on the wall in either the horizontal or vertical direction. Self-clean design has rectangular plate with opening on one end that moves inside a 2-sided frame to prevent clogging. Blast gate function provides a pass-through or shutoff to connect your shop vacuum to your central dust collection system or a branch line to one of your tools. Molded fitting has overall dimensions of 10-1/4″ long and 5-1/2″ wide in the open or closed position. Each 2-1/2″ OD port on either side of the gate is 1-1/2″ long to provide room to slide on hose and apply hose clamps at each connection. Molded using ABS material to maintain shape and withstand woodshop environment. Features: Wall mount flange molded on blast gate fitting Self-cleaning design minimizes clogging Durable, abrasion resistant construction Specifications: Fitting Dimensions: 10-1/4″ x 5-1/2″ in open or closed position Flange Dimensions: 6-1/2″ x 3-1/4″ Port Size: 2-1/2″ OD port is 1-1/4″ long Material: ABS plastic What’s Included: (1) WoodRiver® Dust Connection – 2-1/2″ Wall Mount Self-Clean Blast Gate
