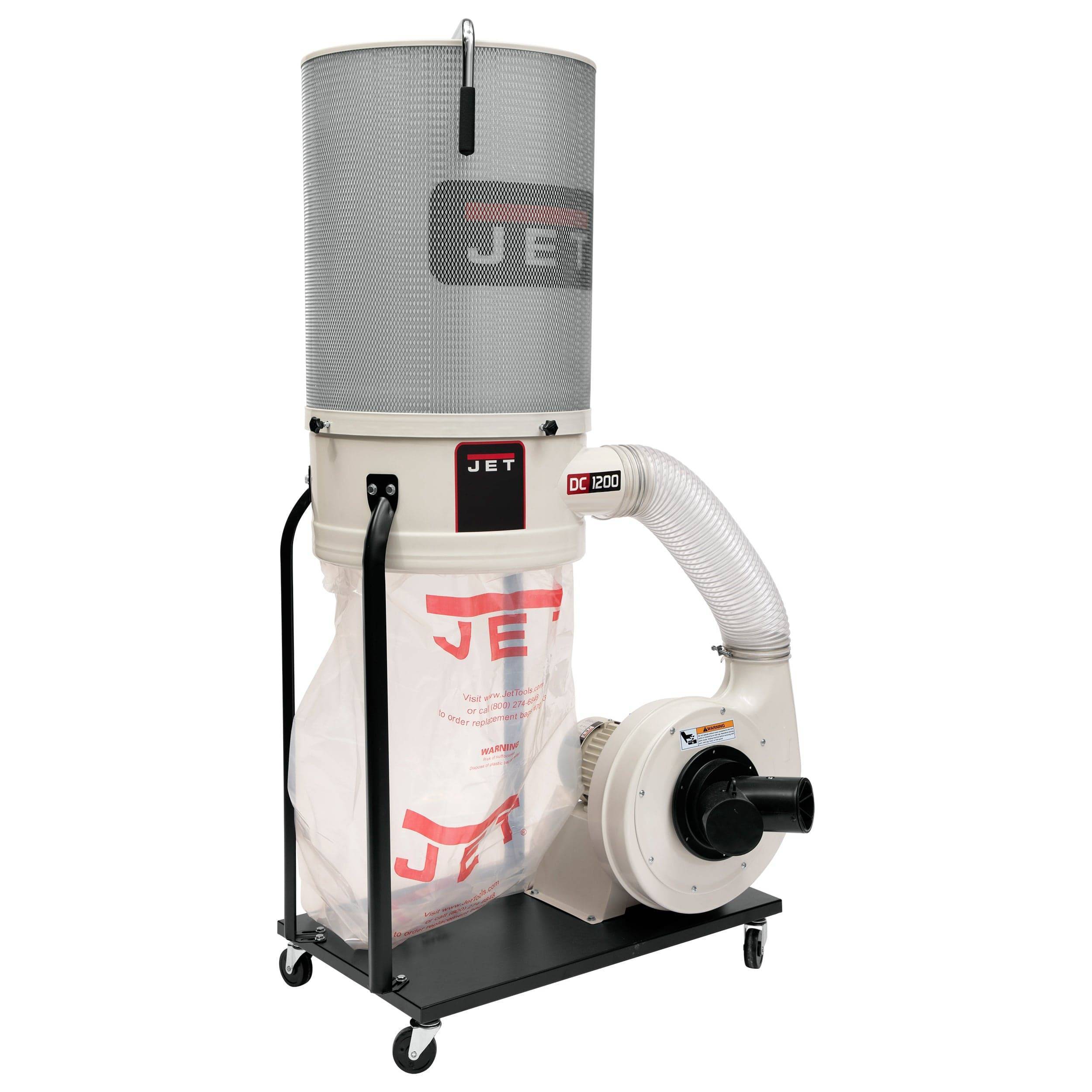

Vortex Cone Dust Collector with 2-Micron Canister Kit – 2 HP 3 Ph 230/460V – DC-1200VX-CK3

The Jet® DC-1200VX-CK3 Dust Collector offers superior particle collection thanks to its exclusive Vortex Cone™ technology, which improves chip separation to prevent the filter’s clogging, strengthening performance quality and extending the lifespan of the machine. The totally enclosed, fan-cooled, 2-horsepower motor is rated for continuous duty with more than enough horsepower for efficient air movement, while the precision-balanced, all-steel impeller maximizes air intake. The see-through design of the dust bag prevents premature bag change-outs while filtering up to 98% of 2-micron particles, and the sewn-in snap ring makes for rapid insertion and removal. Its canister is installed and removed without tools thanks to the large, ergonomic knobs that are easy to handle. Plus, four heavy-duty casters make for easy mobility around the workshop. Features: Vortex Cone improves chip separation and collector bag packing efficiency Eliminates premature filter clogging for sustained performance Single-stage design for economical and quiet operation Industrial controls designed for years of trouble-free use Quick-connect collection bags with elastic band for fast, easy installation and removal High air velocity (CFM) design stands up to any competitive specifications Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty Includes four casters for maneuverability and total portability Specifications: Model: DC-1200VX-CK3 Motor Type: TEFC Motor: 2 HP Motor Phase: 3Ph Motor Voltage: 230/460V Prewired Voltage: 230V Motor Current: 6/3A Overall Size (L x W x H): 37″ x 28″ x 79″ Net Weight: 127 lb Sound Rating at 3′ Distance: 80-85db 1-Hose Connection Diameter: 6″ 2-Hose Connection Diameter: 4″ Bag Diameter: 20″ Filter Bag Length (installed): 25″ Collector Bag Capacity (cubic feet): 5.3 Collector Bag Length: 29″ Air Flow at 4″ (CFM): 1,200 Static Pressure (inches of water): 11-1/2″ Filter Bag Efficiency: 98% of 2 micron Air Inlet: (1) at 6″ or (2) at 4″ Impeller Diameter: 12″ Impeller Material: Steel Separator Tank Diameter: 20″ Separator Tank Height: 10″ What’s Included: (1) Jet® Vortex Cone Dust Collector with 2-Micron Canister Kit – 2 HP 3 Ph 230/460V – DC-1200VX-CK3 Shipping / Billing Information All shipments must be inspected and any damage reported within 3 days of receipt. Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges. This product ships direct from the manufacturer: Your order will ship in 7-10 business days. This product is considered special order. Your account will be charged when you place your order. Express or overnight shipping is not available for this product. Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries. Return Information All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.
