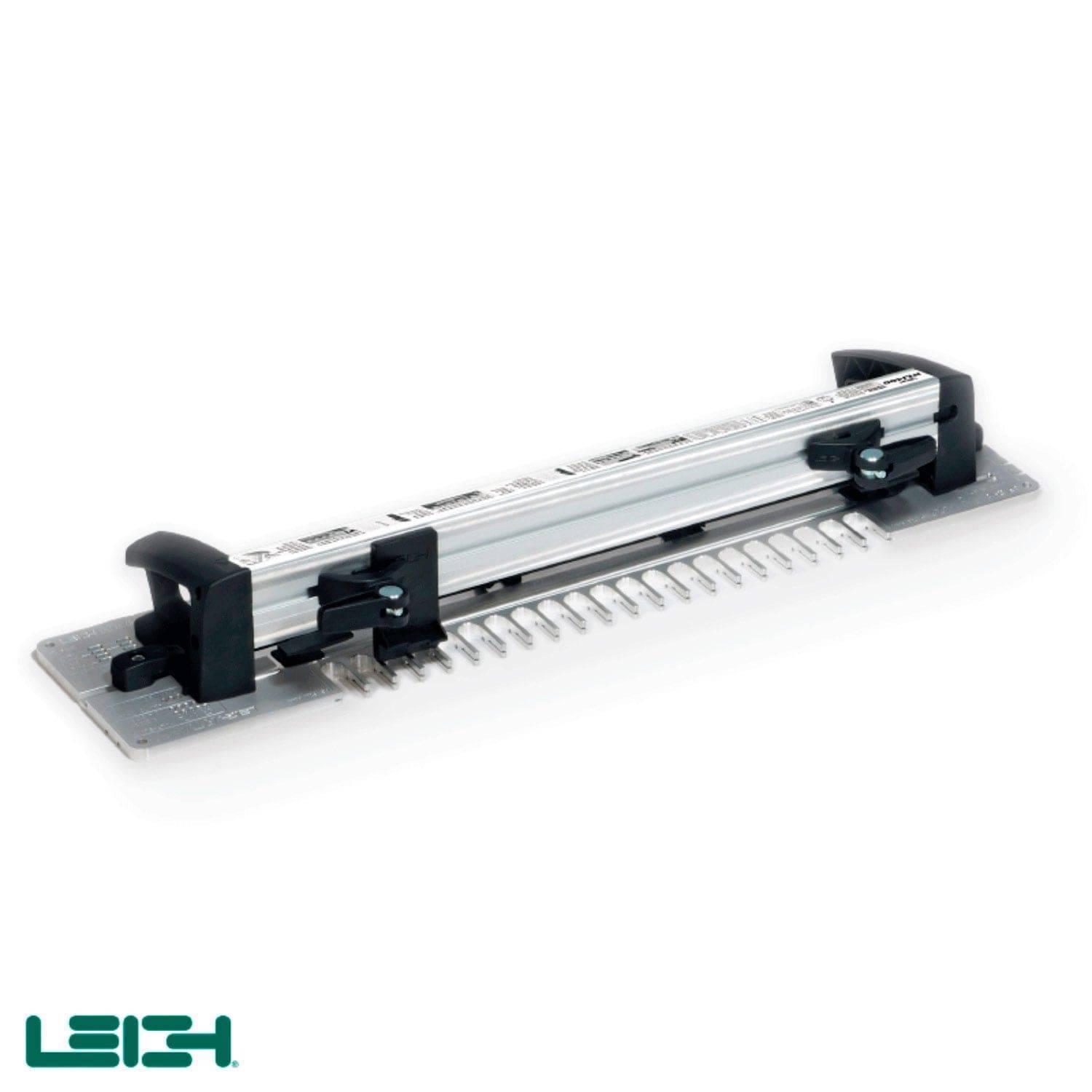

RTJ400 Router Table Joinery Jig

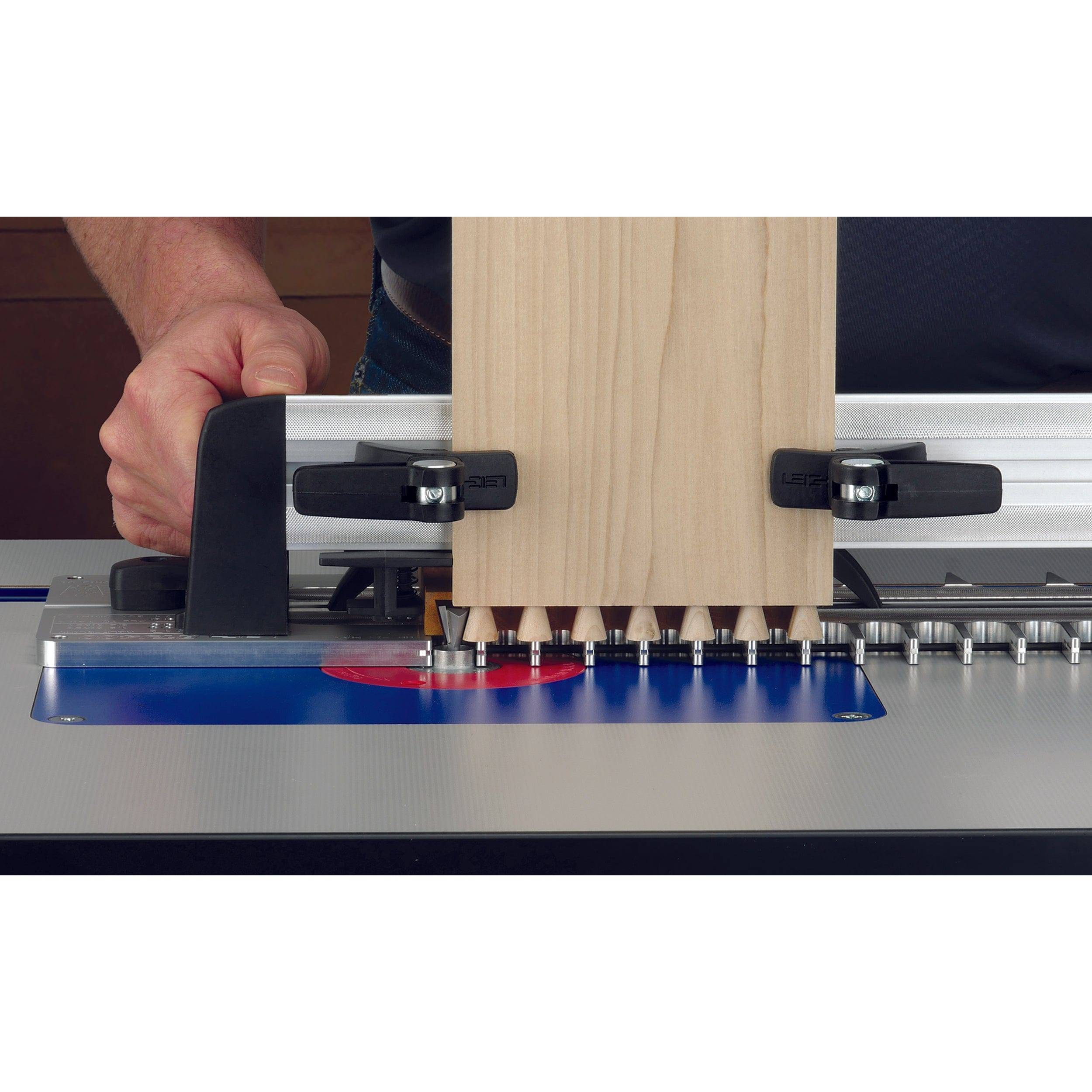

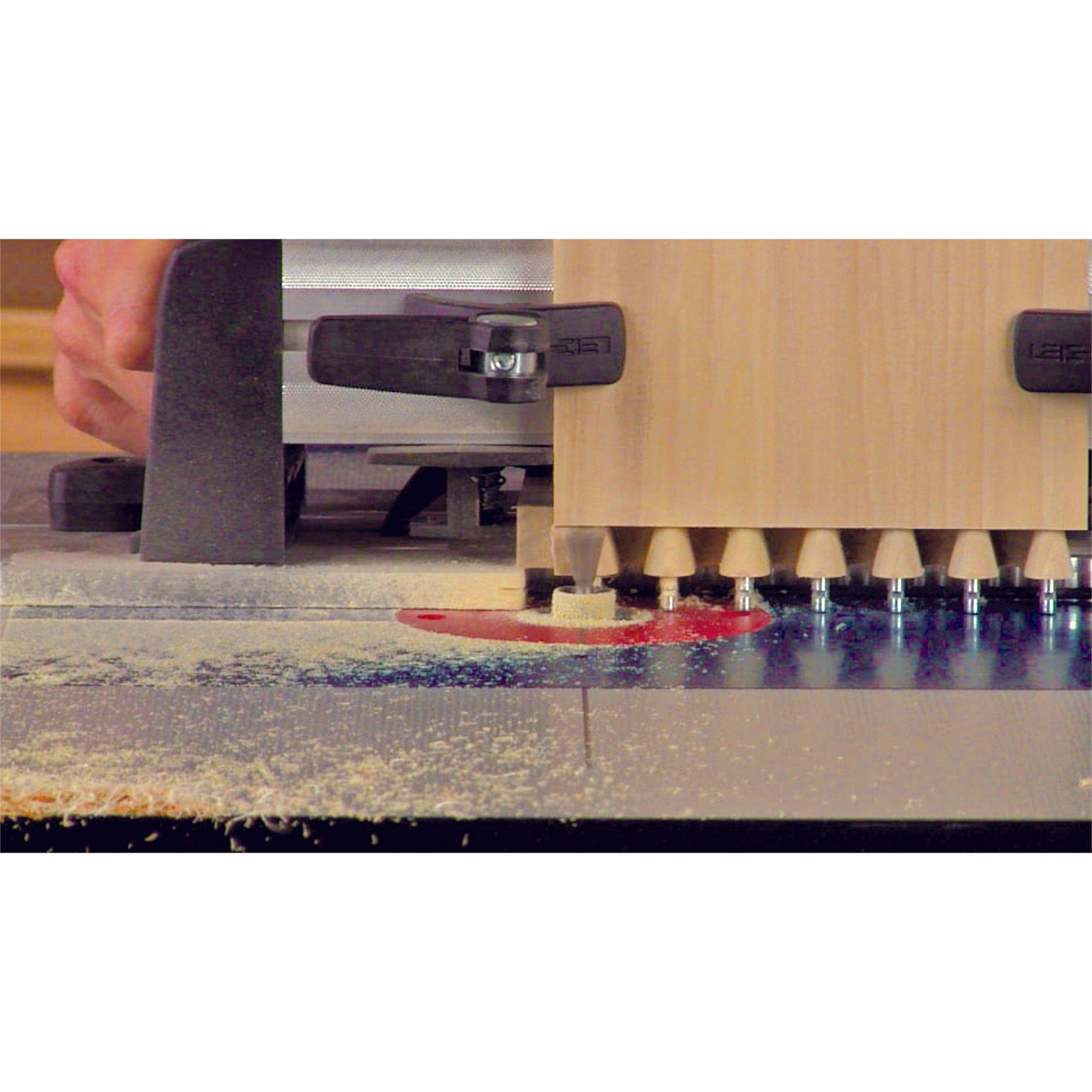

Leigh’s RTJ400 Router Table Dovetail Jig is designed specifically for router table use. The RTJ400 offers fast and accurate routing of through dovetails, box joints and half-blind dovetails on your router table. The Leigh template is precision CNC machined from aircraft grade aluminum for perfect joinery every time. Versatility is a key feature of the RTJ400. It makes 9 sizes of through dovetails, 3 sizes of half-blind dovetails and 4 sizes of box joints. Perfect joint fit is guaranteed and repeatable, with the patented Leigh e10 guide bushing. Standard equipment includes: CNC machined template; adjustable side-stop for all joint types; cam clamps; 1/2″ x 14º and 1/2″ x 13/16″ x 8° dovetail bits; 3/8″ x 1-1/4″ and 1/2″ x 1-1/4″ straight bits; e10 elliptical guide bushing; quick reference strips and fully illustrated user guide. Features: • CNC machined template for absolute precision • Elliptical e10 guide bushing is adjustable for recordable joint fit adjustment • Cam-action clamps provide strength and adjustable width clamping • Adjustable side-stop for varying board widths with built-in offset for rabbeted drawer fronts • Up to 16″ board width; half-blind DT 1/2″-1″ board thickness; box joints and through DT 1/8″-1″
