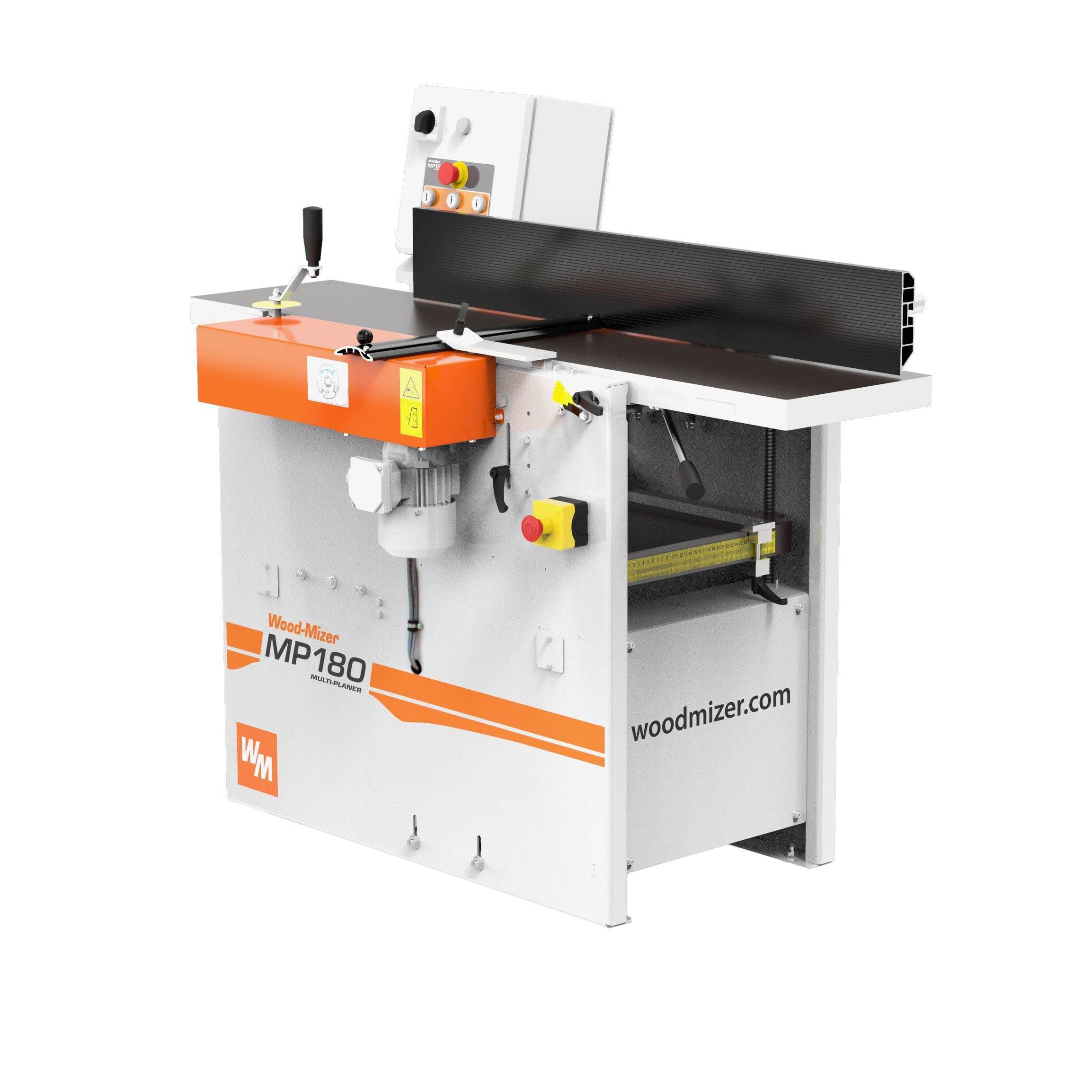

MP180 Planer / Jointer / Moulder – 230v 1Phase with Variable Feed

The Wood-Mizer MP180 is a three-in-one Jointer Planer and Moulder able to produce tongue and groove paneling, shiplap, trim, and more. The MP180 efficiently shares one horizontal cutter between two cast iron tables to produce straight-edged boards with the top jointer table and evenly planed boards with the bottom planer table. Switching between jointing and planing is done easily by moving the board from one table to the other without needing to adjust the table or stop the cutter or extractor. In addition, the MP180 features one vertical side cutter that can be fitted with planning or moulding profile knives. The vertical side cutter moulds material on one side with each pass through the bottom planer table. Profiles like tongue and groove can be completed in two passes. Features: Joint, Planing & Moulding in one unit Cast Iron Tables 45˚ Adjustable Fence Variable Speed Control Dust Port For Each Cutting head Compact Construction No adjustments need to go from jointing to planing Specifications: Max Jointer width: 12″ (305m) Jointer table length: 55″ (1,410mm) Max Jointer chip thickness: 5/16″ (8mm) Jointer fence: 6″ x 43″ (152mm x 1,100mm) Max Planer width: 16″ (410mm) Max Planer height: 9-1/2″ (241mm) Planer table length: 32-1/2″ (826mm) Max Planer chip thickness: 1/8″ (4mm) Max Moulder height (standard): 2″ (51mm) Max Moulder height (optional): 4″ (102mm) with side cutter head extension 2-Sided Planing/Moulding width: 1″ (25mm) to 12” (305mm) Power – vertical side cutter: 4HP (3kW) motor Horizontal cutter profile depth: 1/16″ (2mm) Horizontal cutter diameter: 2-7/8” (73mm) Horizontal cutter spindle speed: 5600 rpm Power – horizontal cutter: 4HP (3kW) motor Planer knives: 2 horizontal and 2 vertical HSS planer knives included Feed roller diameter: 1-1/4″ (32mm) Power – variable feed motor: 3/4HP (0.55kW) Planetary gear for variable feed: 6 – 39 fpm (2 – 12 mpm) Connection requirements: 1-phase, 240V, 60Hz, 38A Shipping weight: 1075 lbs (420kg) Shipping length x width x height: 63″ x 42″ x 54″ (1600mm x 1054mm x 1370mm) Delivery: Pallet Warranty: 2-Year Included with Product: Straight knives for each cutting head Joint/Planer fencing and safety guards Parts kit and manual Shipping / Billing Information This product ships direct from the manufacturer: Your order will ship in approximately 5 business days. This product is considered special order. Your account will be charged when you place your order. Express or overnight shipping is not available for this product. Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries. Return Information See additional document on Product Page Warranty Information Limited Warranty – see additional document on product page
