Lumber Rack Strap, 24″

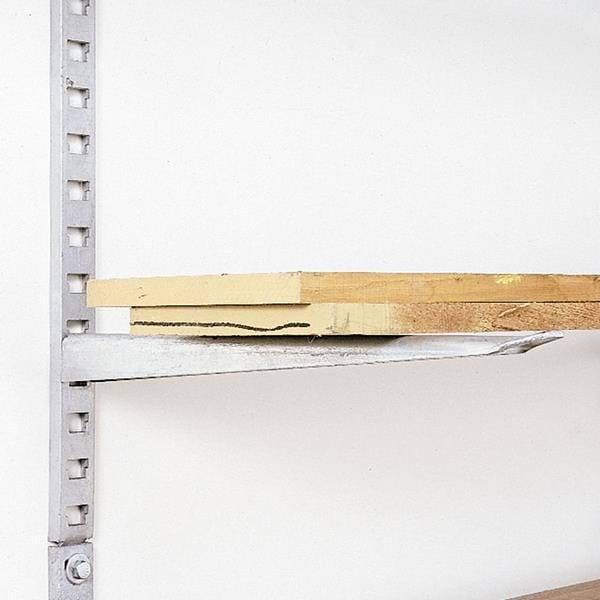

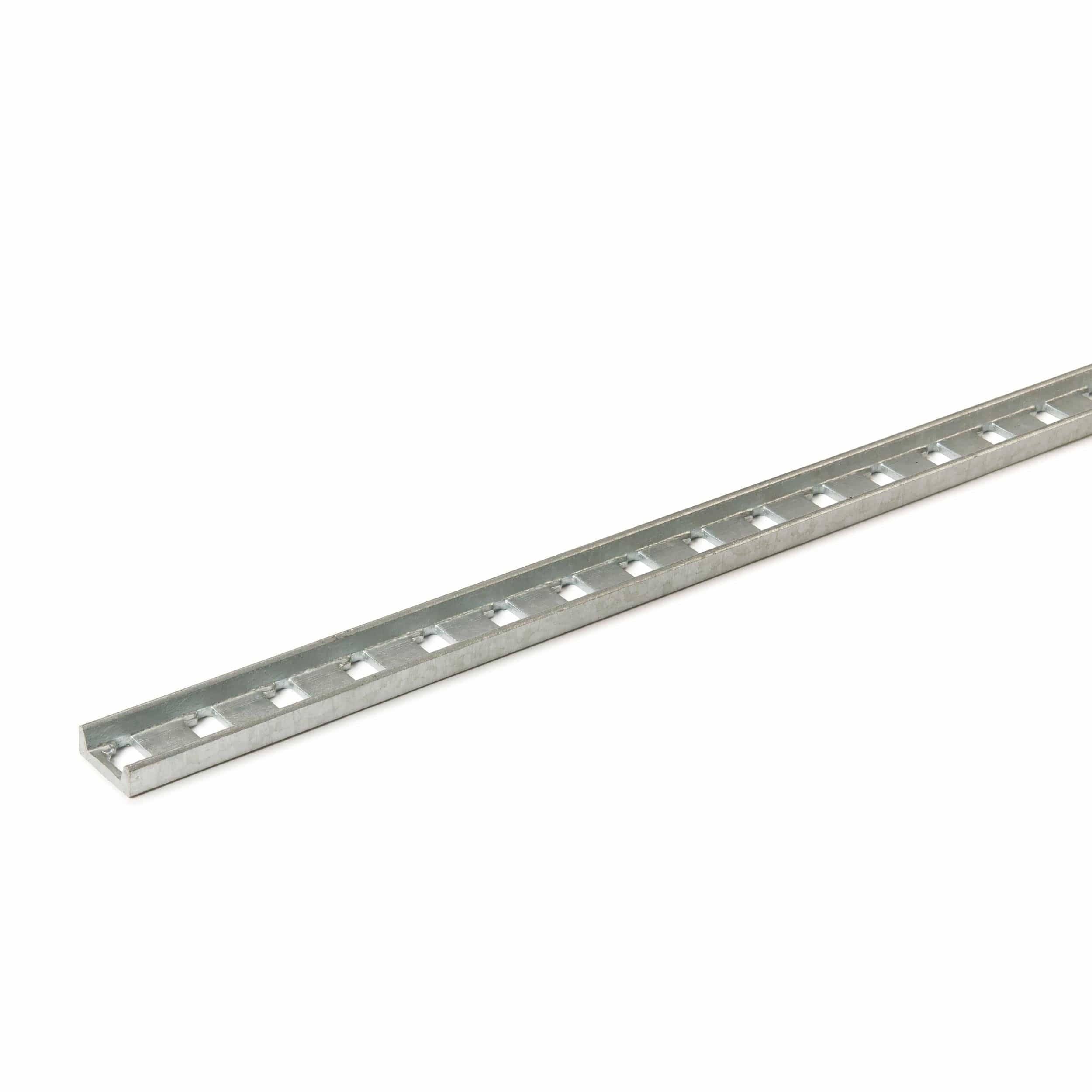

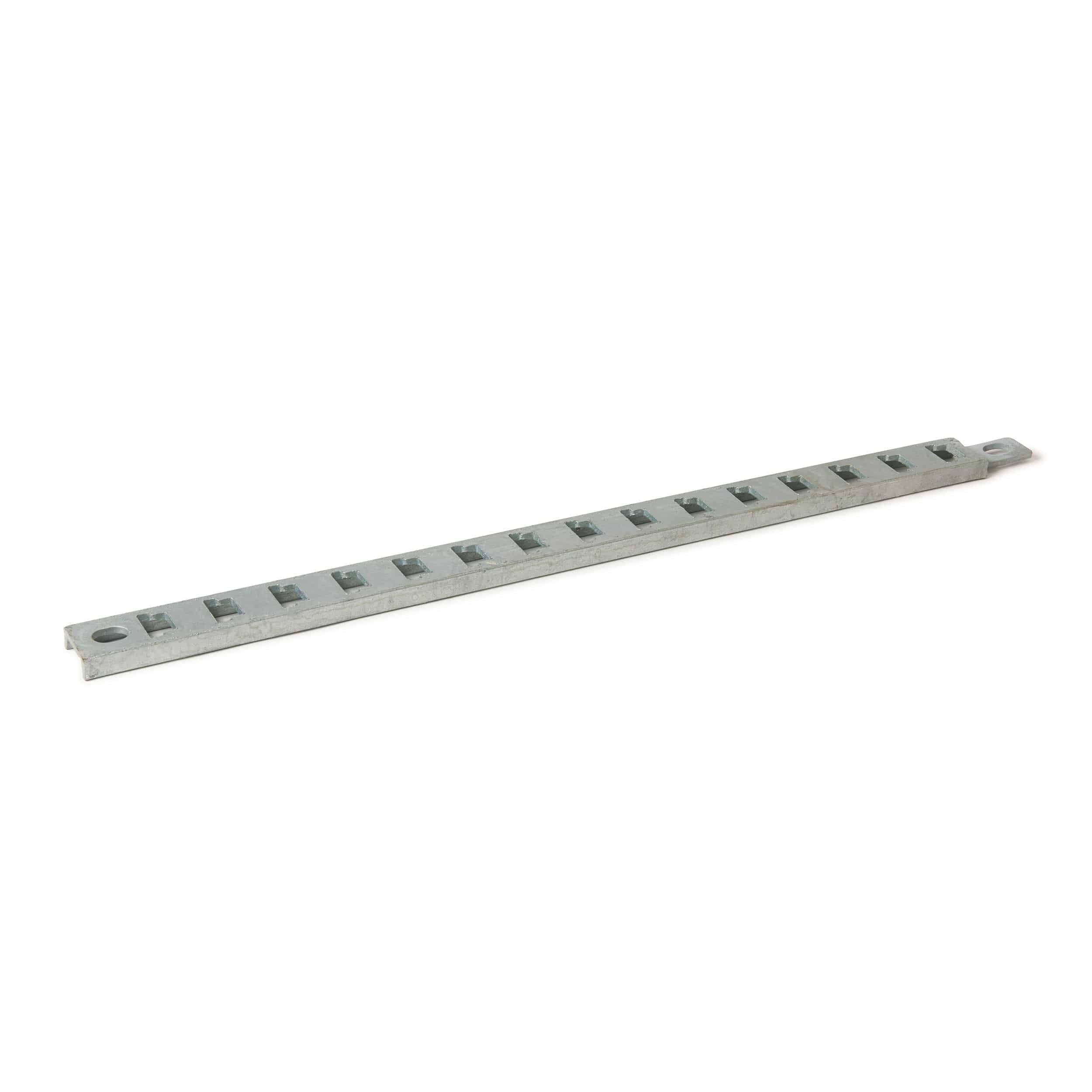

This high load capacity system can be used to store lumber. The 24″ straps are formed from 3/16″ thick steel and coated with a rust protective coating. The 24″ strap has a mounting tab that nests under the 55″ strap for applications where the units are stack mounted. Straps have “keyed” adjustment holes, spaced 1-1/2″ apart, to lock the brackets into the straps. The straps should be anchored to the wall with heavy lag type bolts or expansion studs in concrete. The straps should also contact the floor or a spacer to transfer the weight of the rack from the wall to the floor. Straps should be placed no farther than 36″ apart to properly support the weight of the lumber. High load capacity system Formed from 3/16″ thick steel Coated with a rust protective coating 24″ strap
