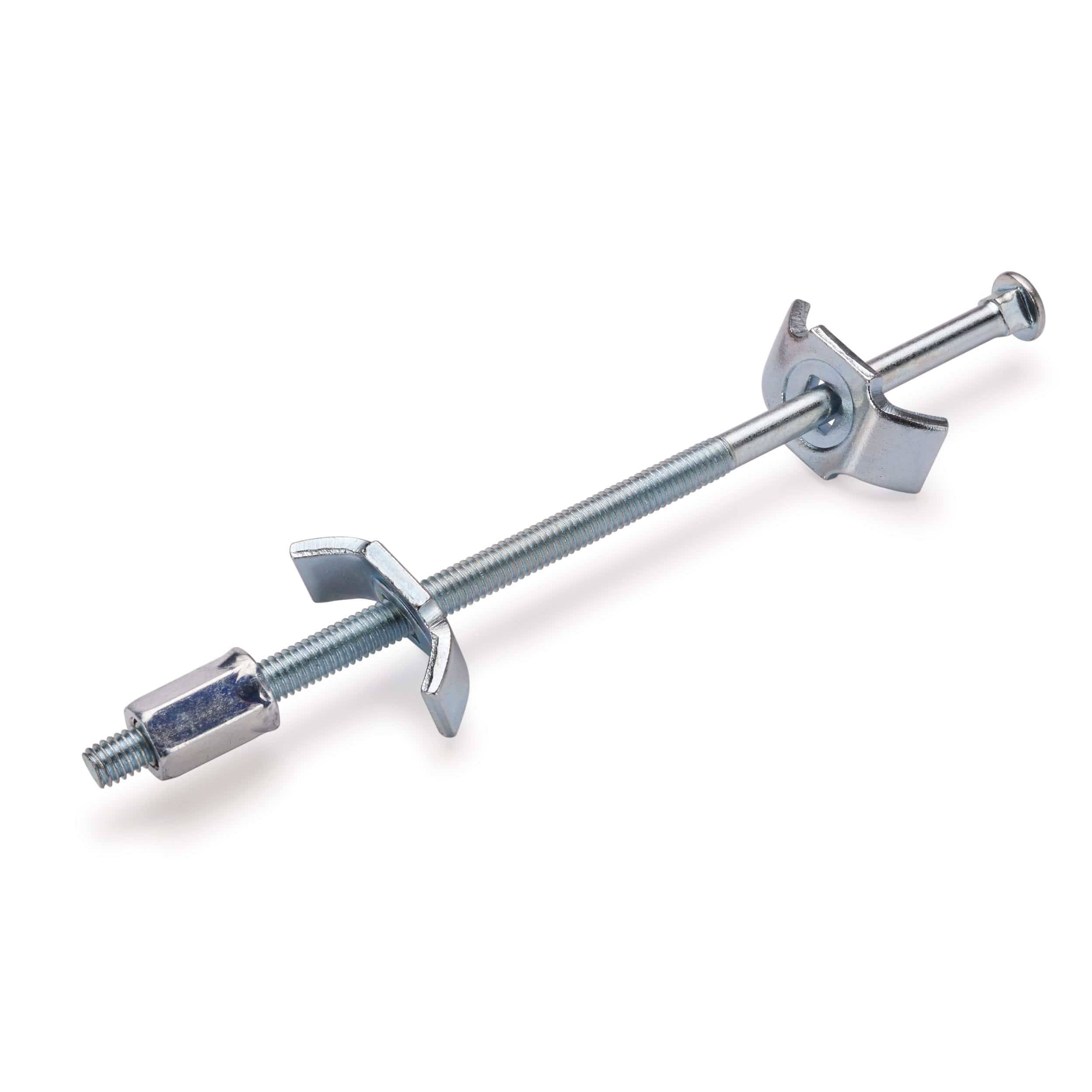

Large Joint Connector 5-3/4″ to 6-1/2″

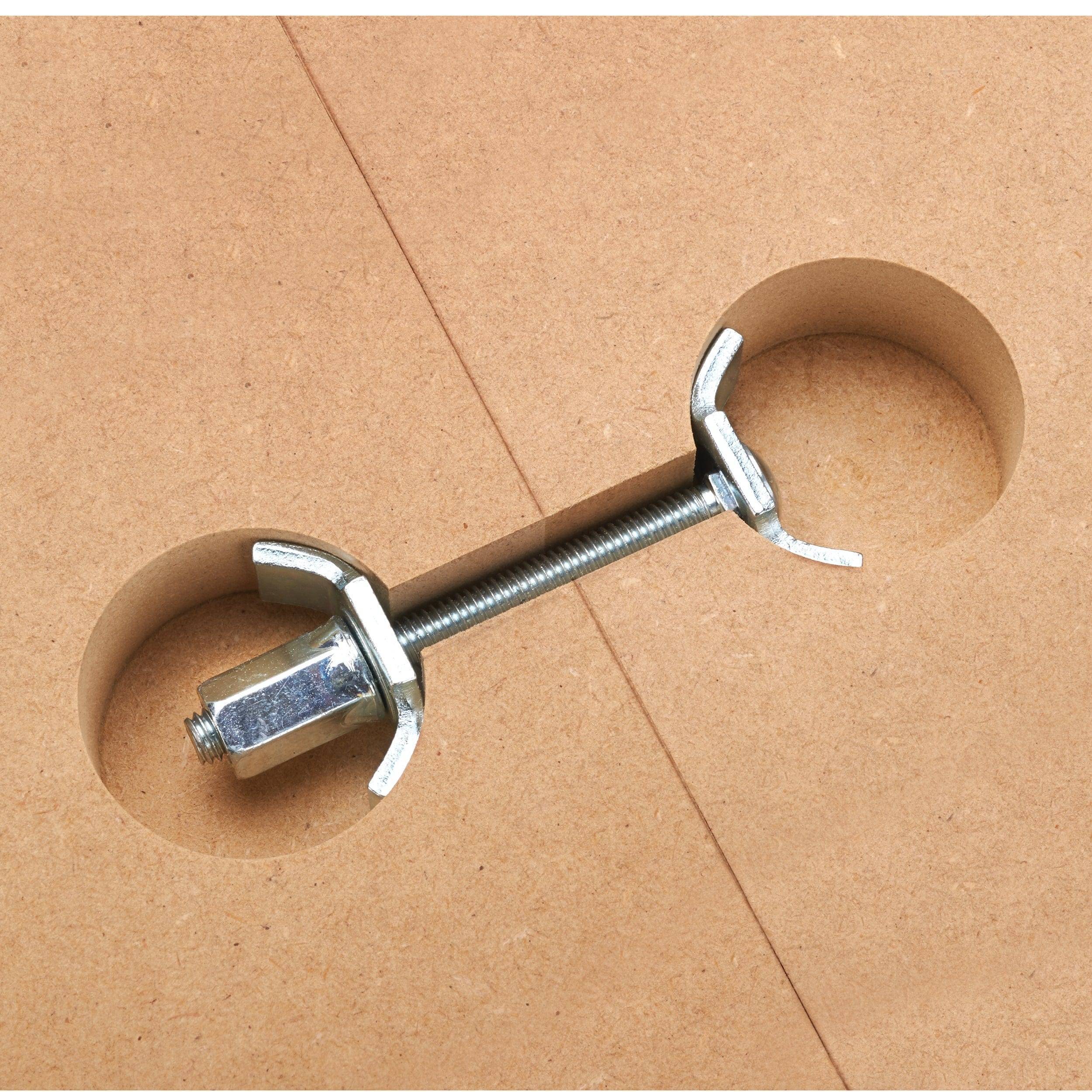

These concealed fittings allow work surfaces to be connected rapidly and securely. They are great for joining countertop sections together. The semi-circular fastening elements are pressed against the recess walls as tension is applied. Fits in a 35mm (1-3/8″) flat bottomed hole drilled 3/4″ deep. Use a router with a 1/4″ straight bit to connect holes. Hole spacing on the large connector is 5-3/4″ to 6-1/2″. Features: Easily installed and quickly assembled for material from 19 mm (3/4″) By providing even pressure between the surface joint pieces, this fastener holds without glue The joint can be disassembled if necessary Length 6″ Zinc plated steel, galvanized
