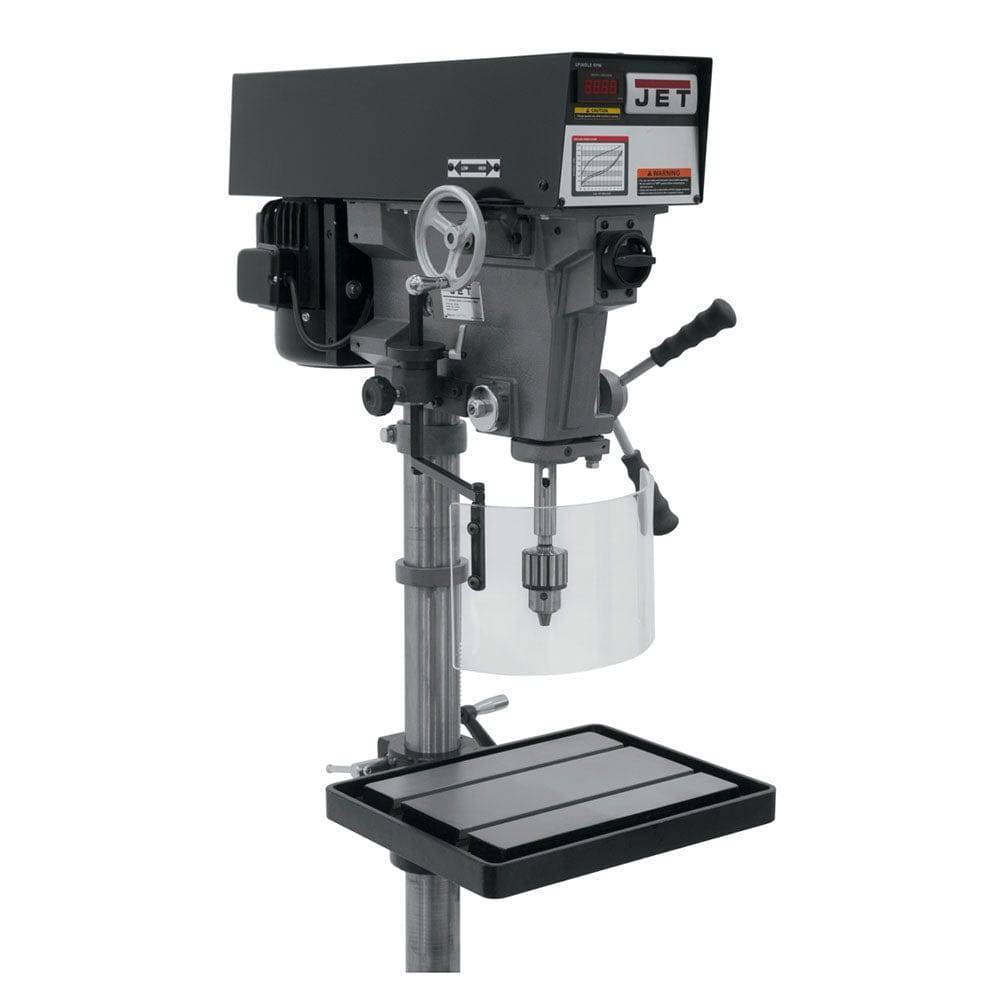

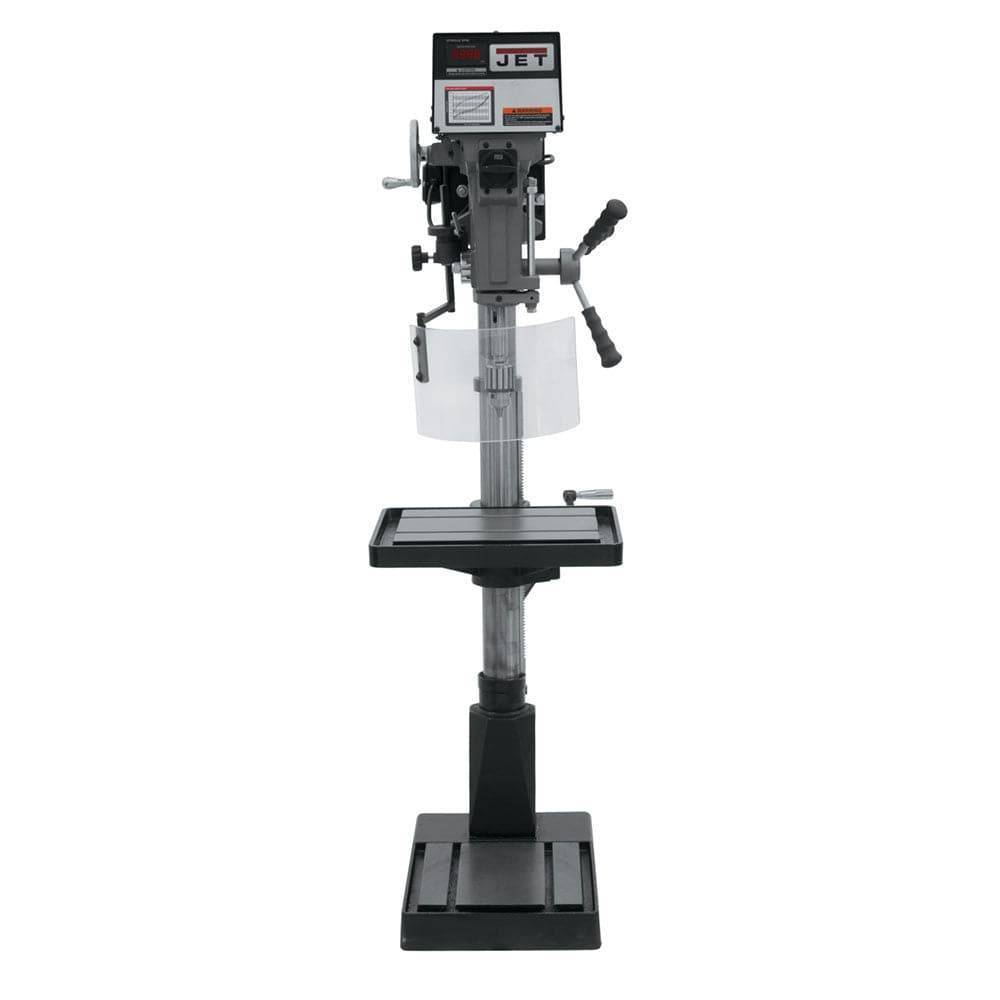

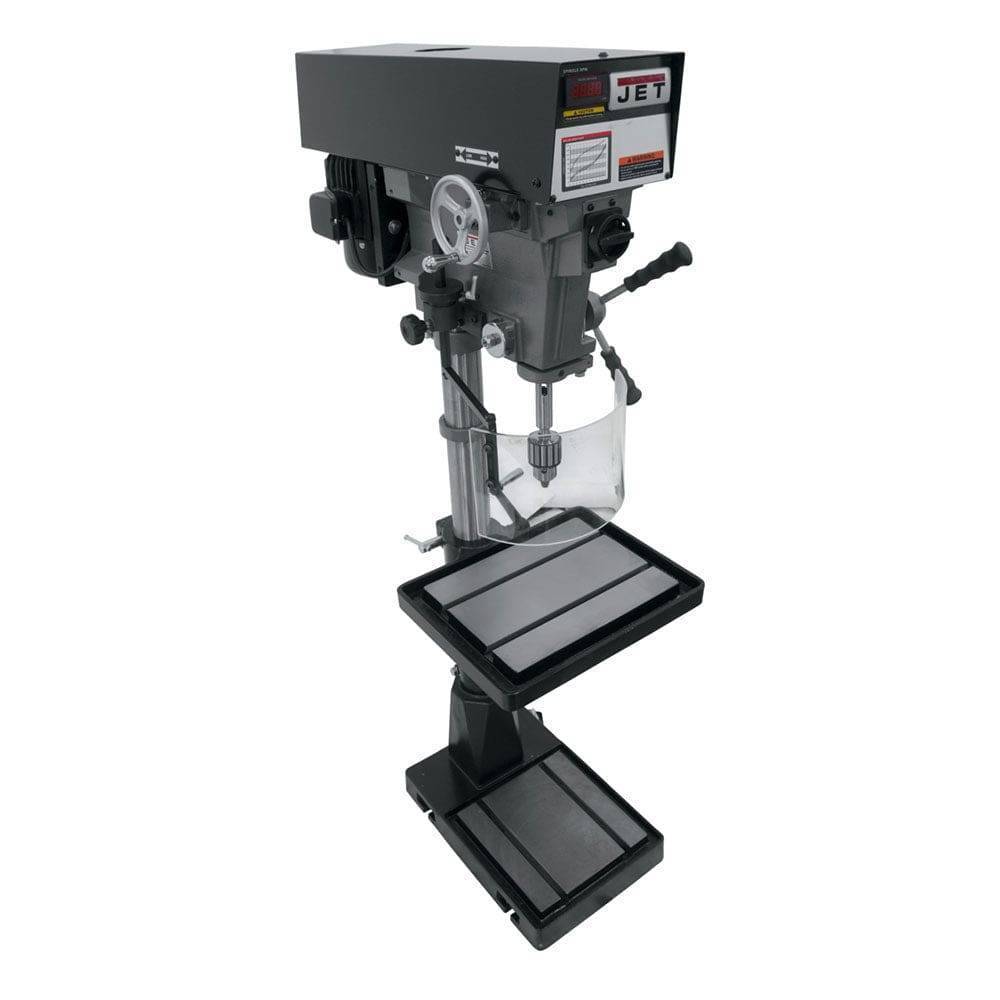

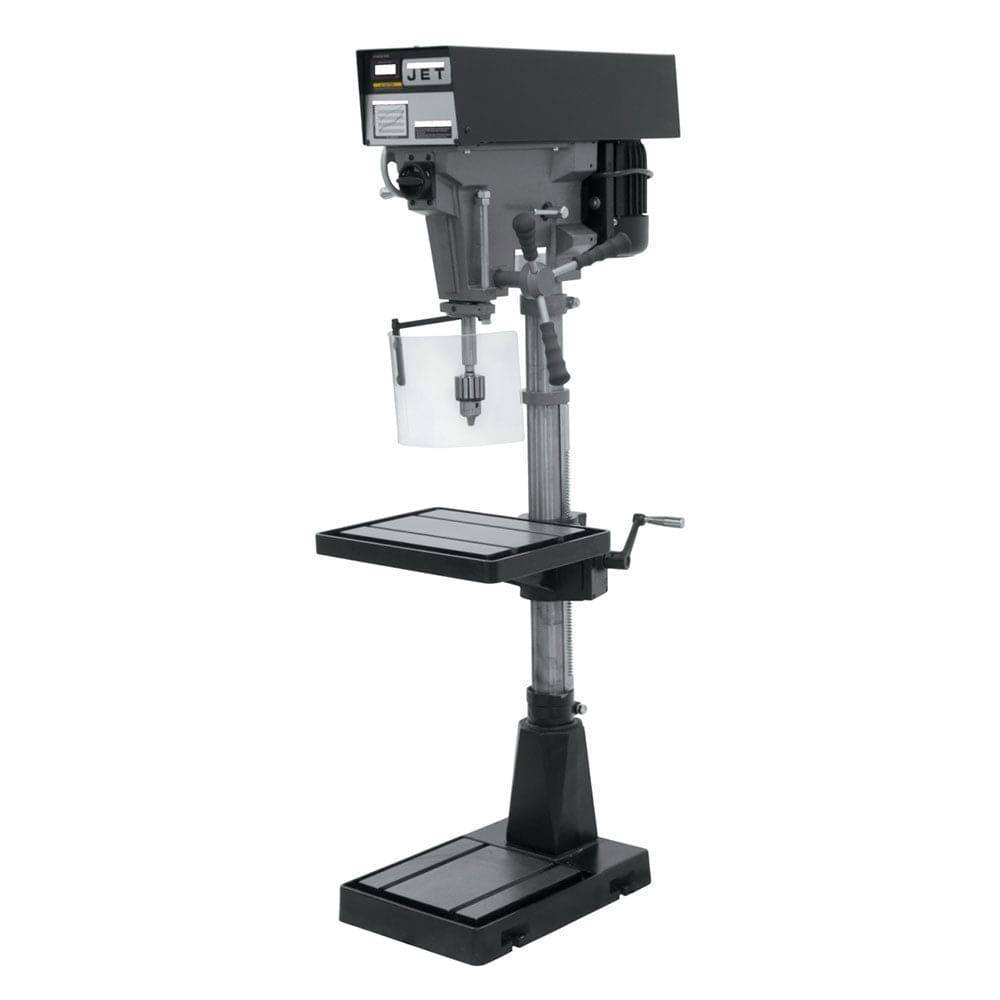

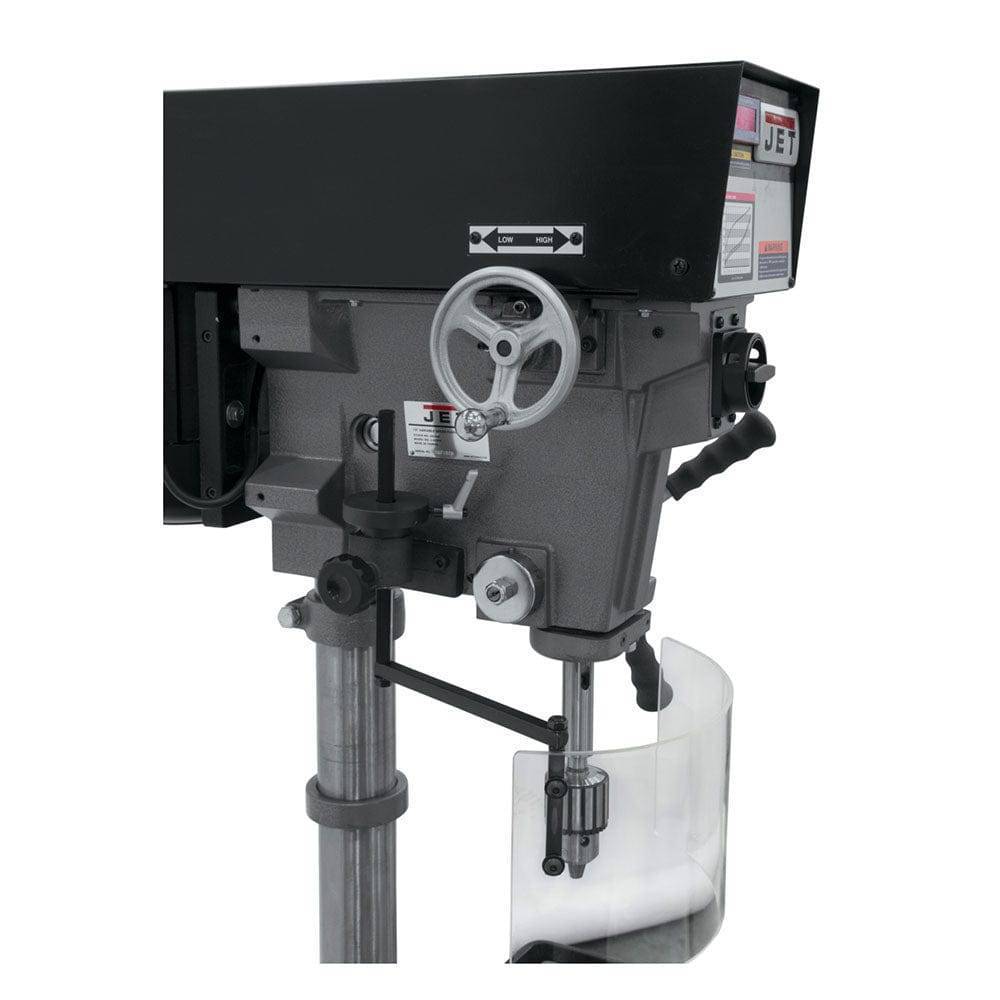

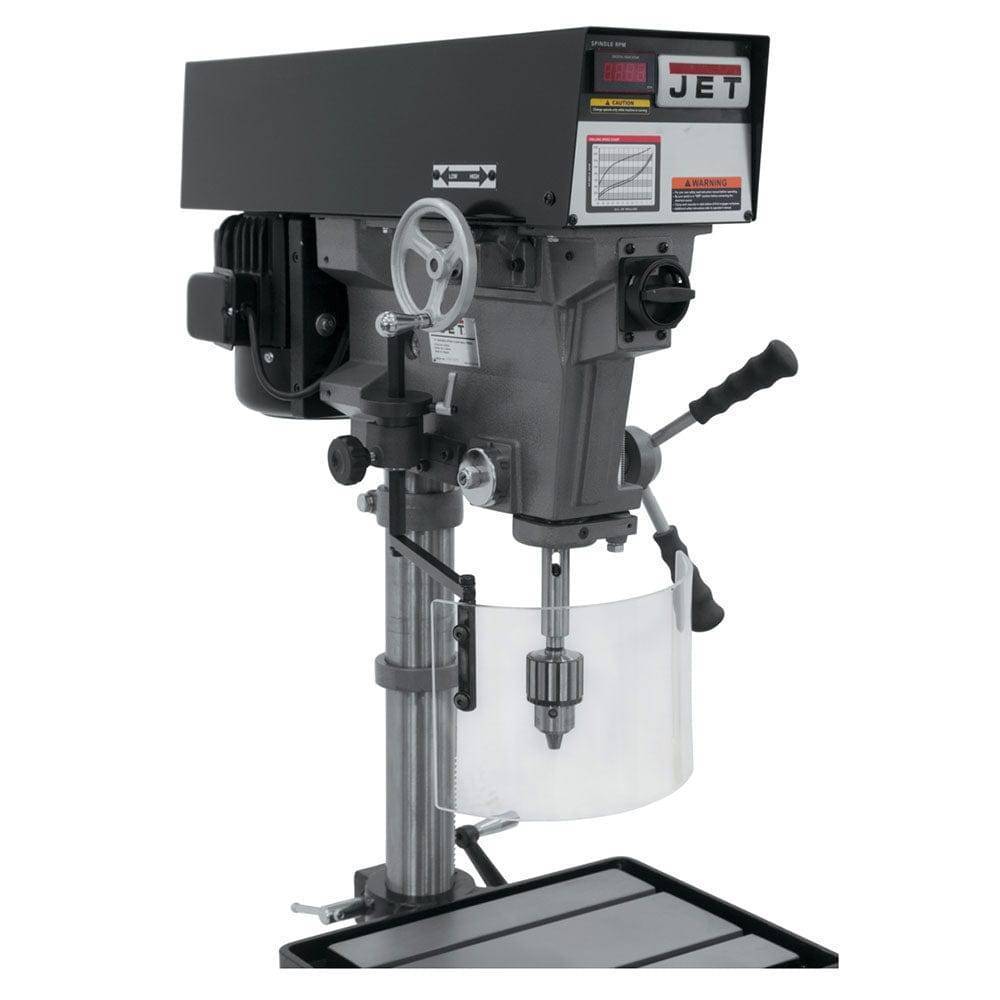

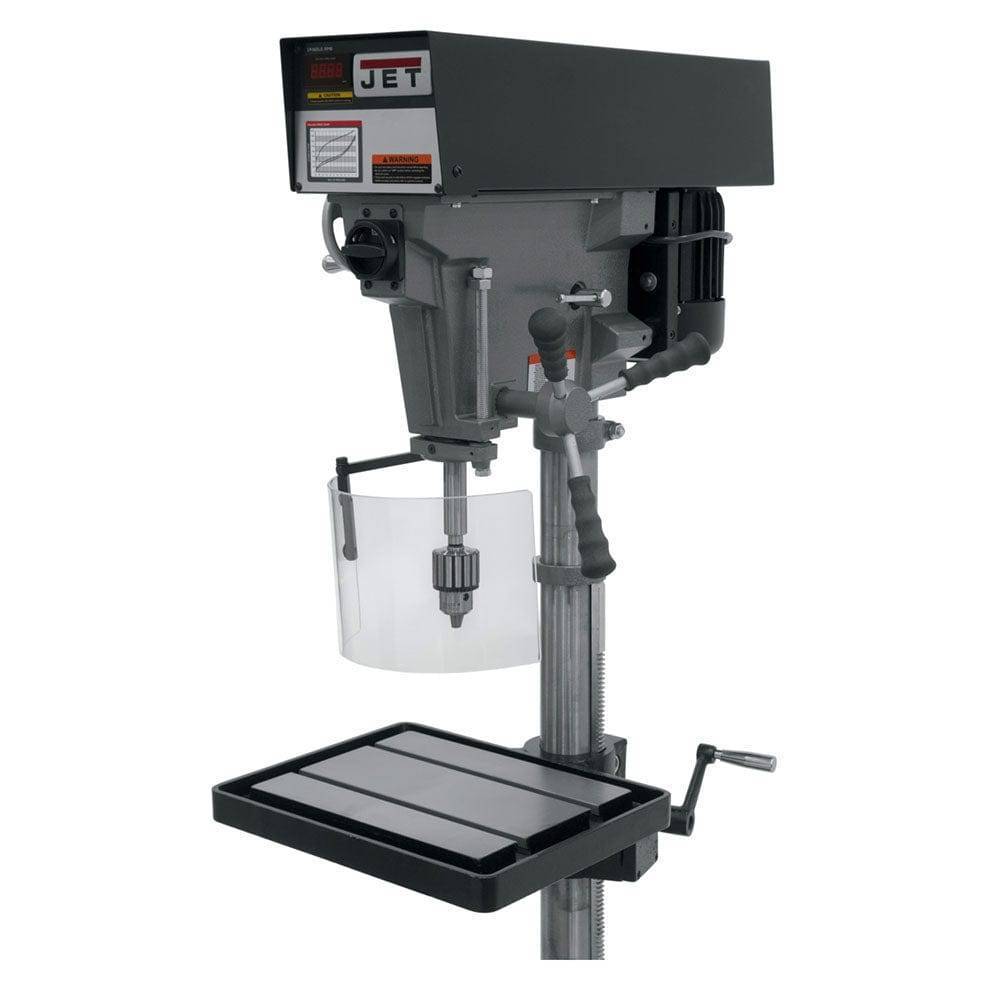

J-A5816 15″ Variable Speed Floor Model Drill Press – 115V – 1Ph

JET Drill Presses are engineered for ultimate control and performance. Featuring a variable-speed motor with a stepped-pulley system and continuously variable transmission, these machines offer a wide speed range—and let you adjust on the fly without stopping operation. The scale-marked handwheel, connected to a precision reduction gearing system, gives operators exact control over chuck speed. With a built-in tensioner pulley to maintain perfect belt tension during speed changes, JET delivers smooth, consistent power for every job. Features: 1/2″ Drill chuck and arbor included 3″ column diameter for maximum head support 6″ stroke for deep hole application Full bearing support on quill for maximum spindle stiffness Handwheel speed adjustment of 400 to 5,000 RPM Large 2-1/4″ quill for greater accuracy Specifications: Stock Number: JT9-354550 Model Number: J-A5816 Base Dimensions: 20-7/16” x 14-3/16” Base Work Table: 12-1/8” x 11-13/16” Column Diameter: 3” Distance Column to Spindle: 7-1/2” Drilling Capacity Cast Iron: 5/8” Drilling Capacity Mild Steel: 1/2″ Drills to Center of Circle: 15” Motor: 1 HP – 115/230V – 1 Ph Overall Dimensions: 30” x 20” x 71” Range of Spindle Speeds: 400 – 5,000 RPM Spindle Distance to Base: 44-1/2” Spindle Distance to Table (Max.): 25-3/4” Spindle Taper: MT-2 Spindle Travel: 6″ Style: Variable T-Slot Centers: 5-5/16” T-Slots Number and Size: 2 and 1/2″ Table Size: 15” x 18” Table Travel: 16-3/4” Weight: 426 lb Work Table Weight Capacity: 90 lb Warranty: 2 Year What’s Included: 2 Year Warranty Shipping / Billing Information All shipments must be inspected and any damage reported within 3 days of receipt. Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges. This product ships direct from the manufacturer: Your order will ship in 7-10 business days. This product is considered special order. Your account will be charged when you place your order. Express or overnight shipping is not available for this product. Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries. Return Information All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.
