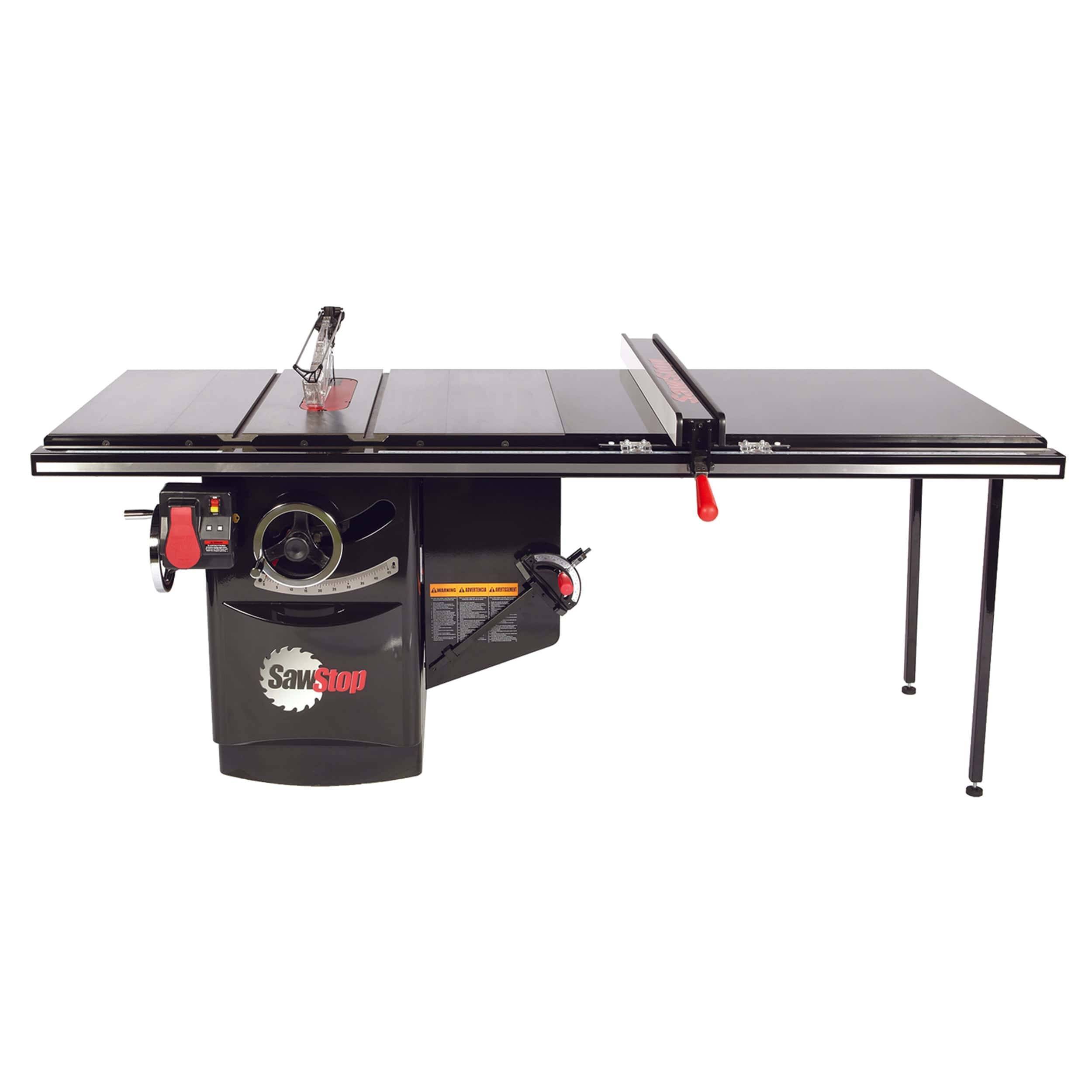

Industrial Cabinet Saw with 52″ Industrial T-Glide Fence System – 5 HP – 1PH – 230V

Features: SawStop’s patented safety system Riving knife reduces the risk of kickback Tool-free quick-change blade guard mount Diagnostic system ensures the saw is ready to respond Dust-Collection Blade Guard 52″ Industrial T-Glide Fence System 5 HP motor 1-phase, 230V 60 HZ Specifications: Overall saw dimensions: 85-1/4″ wide x 36-1/2″ deep x 34″ high Cabinet footprint: 20″ x 25″ Cast-iron table: 24″ w x 30″ d Cast-iron table size with extension wings: 44″ w x 30″ d Motor: 5 HP, 1-phase, 230V 60 HZ Weight: 685 lbs. Blade: 60-tooth, professional grade, 5/8″ arbor Blade diameter: 10″ Blade tilt: left Blade kerf: 0.118″ (3mm) Blade plate thickness: 0.078″ Max. depth of cut, blade at 0º: 3-1/8″ Max. depth of cut, blade at 45º: 2-1/4″ Max. rip, left of blade: 12-1/2″ Dado diameter: 8″ (requires a separate brake cartridge and table insert) Dado max. width: 13/16″ Arbor diameter at blade: 5/8″ Table in front of blade (max. elevation): 11″ Table behind blade (max. elevation): 9-3/4″ Table flatness measured diagonally: 0.010″ maximum gap Miter slots: T-shaped, 3/4″ at top, 1″ at bottom, 3/8″ deep Dust-collection port diameter: 4″ Riving knife/splitter thickness: 0.090″ (2.3mm) Insert: zero clearance, phenolic core, melamine surfaces Belts: 2 V-ribbed belts What’s Included: (1) SawStop Industrial Cabinet Saw with 52″ Industrial T-Glide Fence System – 5 HP – 1PH – 230V
