Gas Spring Pneumatic Stay -12 kg/26 lb

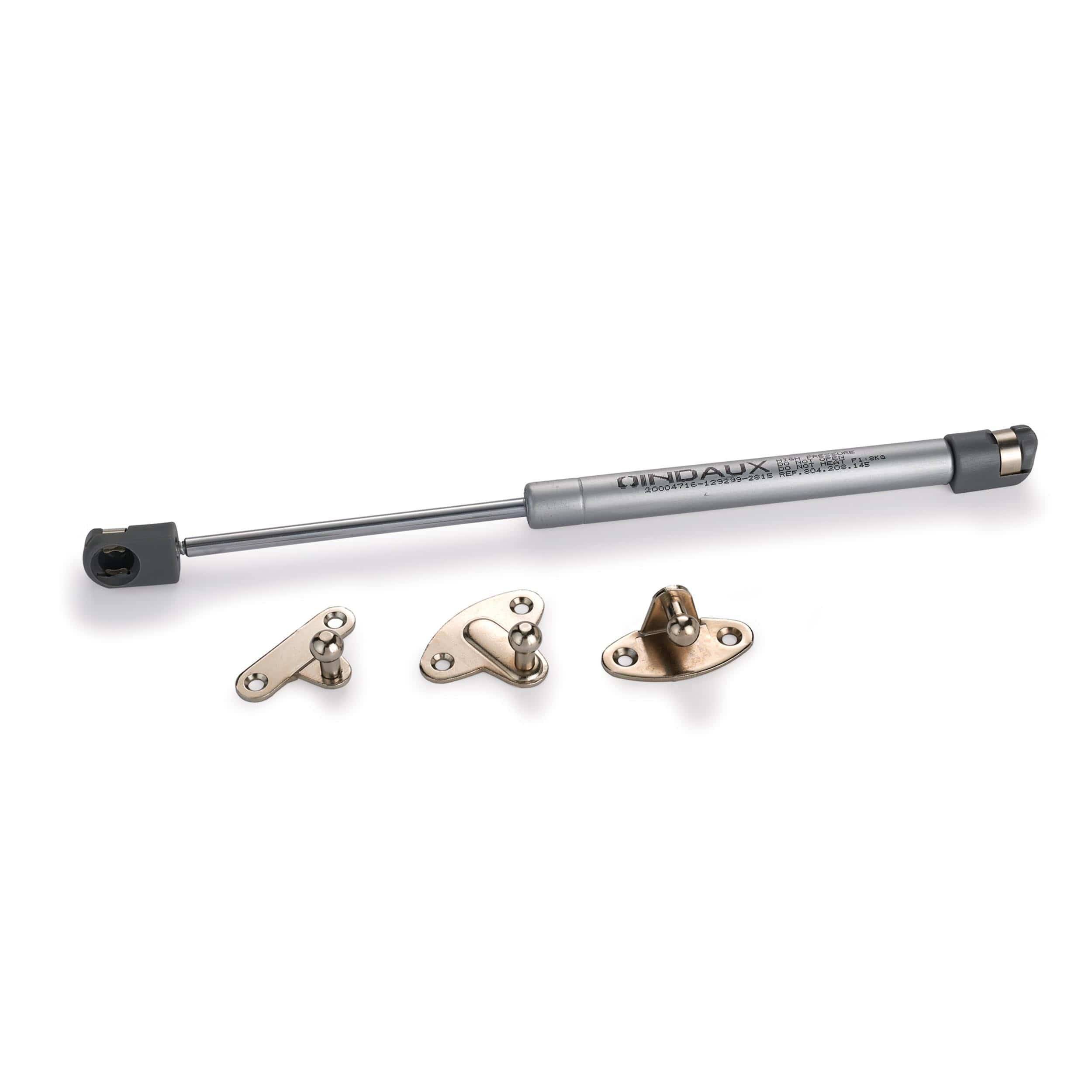

Gas Springs deliver quiet and effortless movement, far surpassing traditional metal springs or friction stays. Designed for both down and up-moving lids, these stays are easy to install. Simply attach the mounting brackets to the case and lid, then snap the stay in place. Each pneumatic stay is rated by its closing force in pounds, so choosing the correct rating is essential—too much force can prevent the lid from closing properly. For lids wider than 36″, using two stays is recommended. Each unit includes screws, mounting plates for left or right installation, and installation instructions. Sold individually. Features: Effortless movement Easy Installation Specifications: Closing Force: 12Kg/26lbs Whats Included: (1) Gas Spring Pneumatic Stay and mounting brackets Formula to determine correct stay: X=6xWxH/1000 X= closing force in lbs W=weight of lid in KG (2.2 lb per kg) H=height of lid in mm (25.4 mm per inch) Example A lid that weighs 11 pounds (5kg) And is 10″ high (254 mm): X=6x5x254/1000 = 7.62 kg Lid stays available in the following: 6 kg/13 lbs rated stay #162395 8 kg/17 lbs rated stay #162396 10 kg/22 lbs rated stay #162397 12kg/26 lbs rated stay #162398 15 kg/33 lbs rated stay #162399
