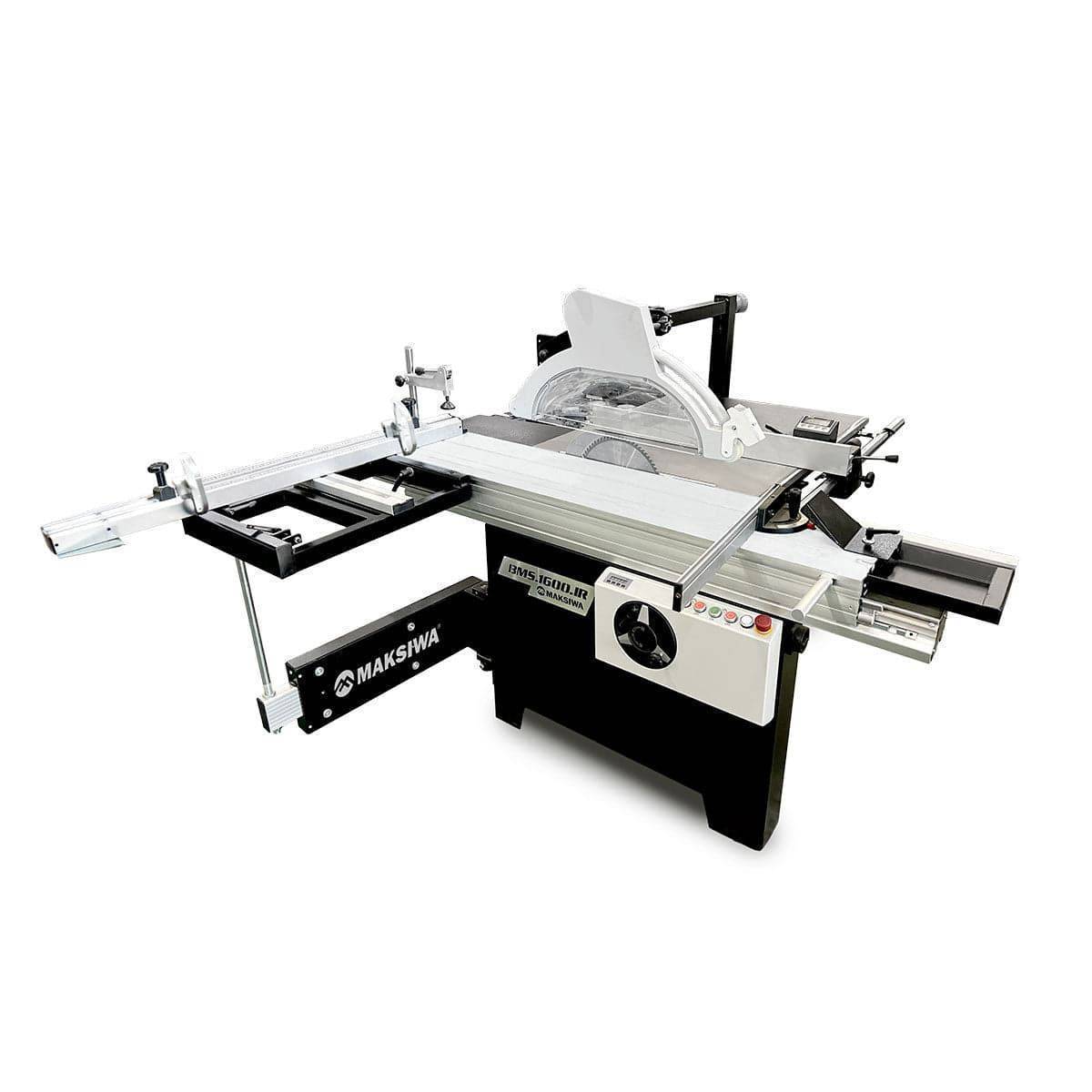

BMS.1600.IR Sliding Table Saw – Dado Edition – 5 HP – 1 PH

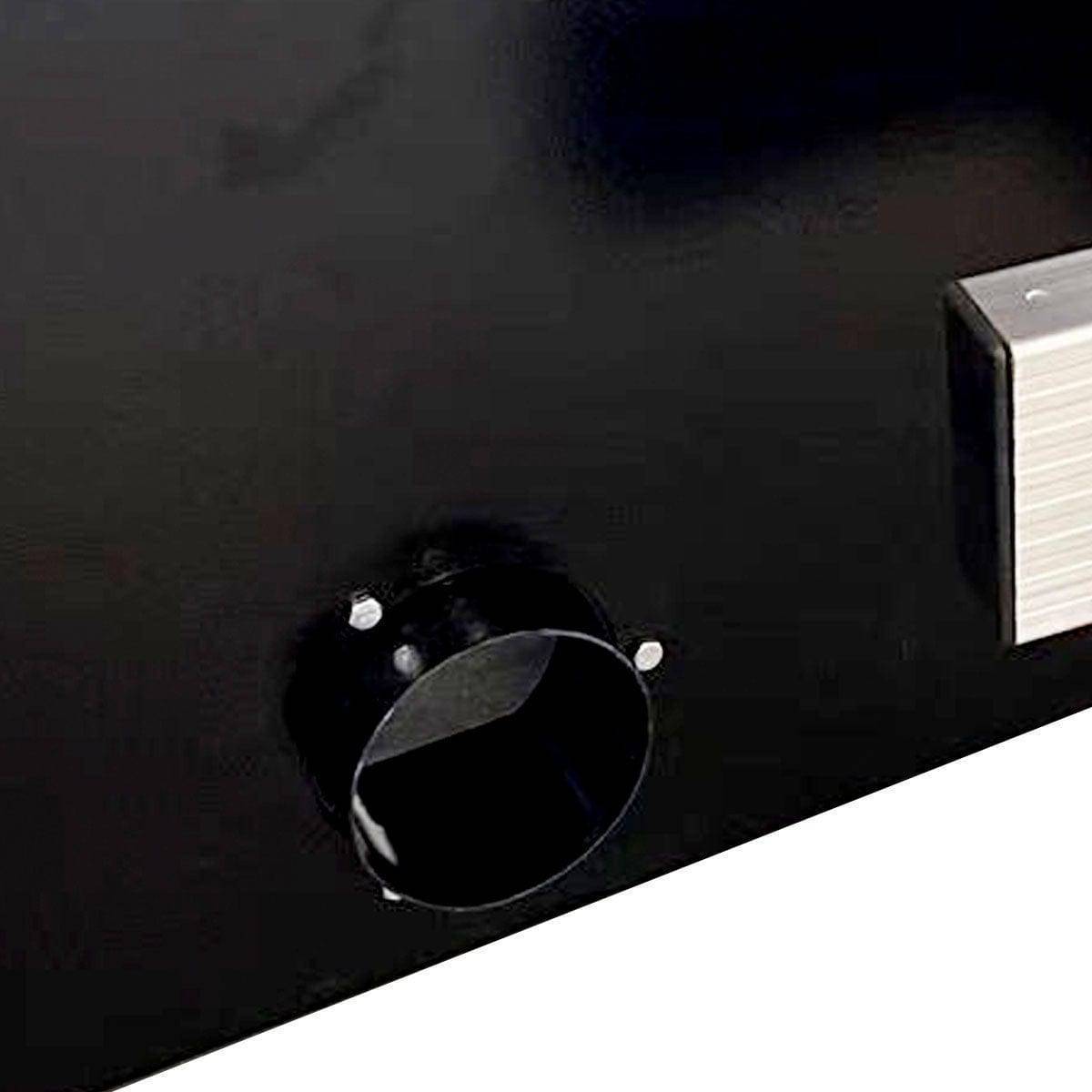

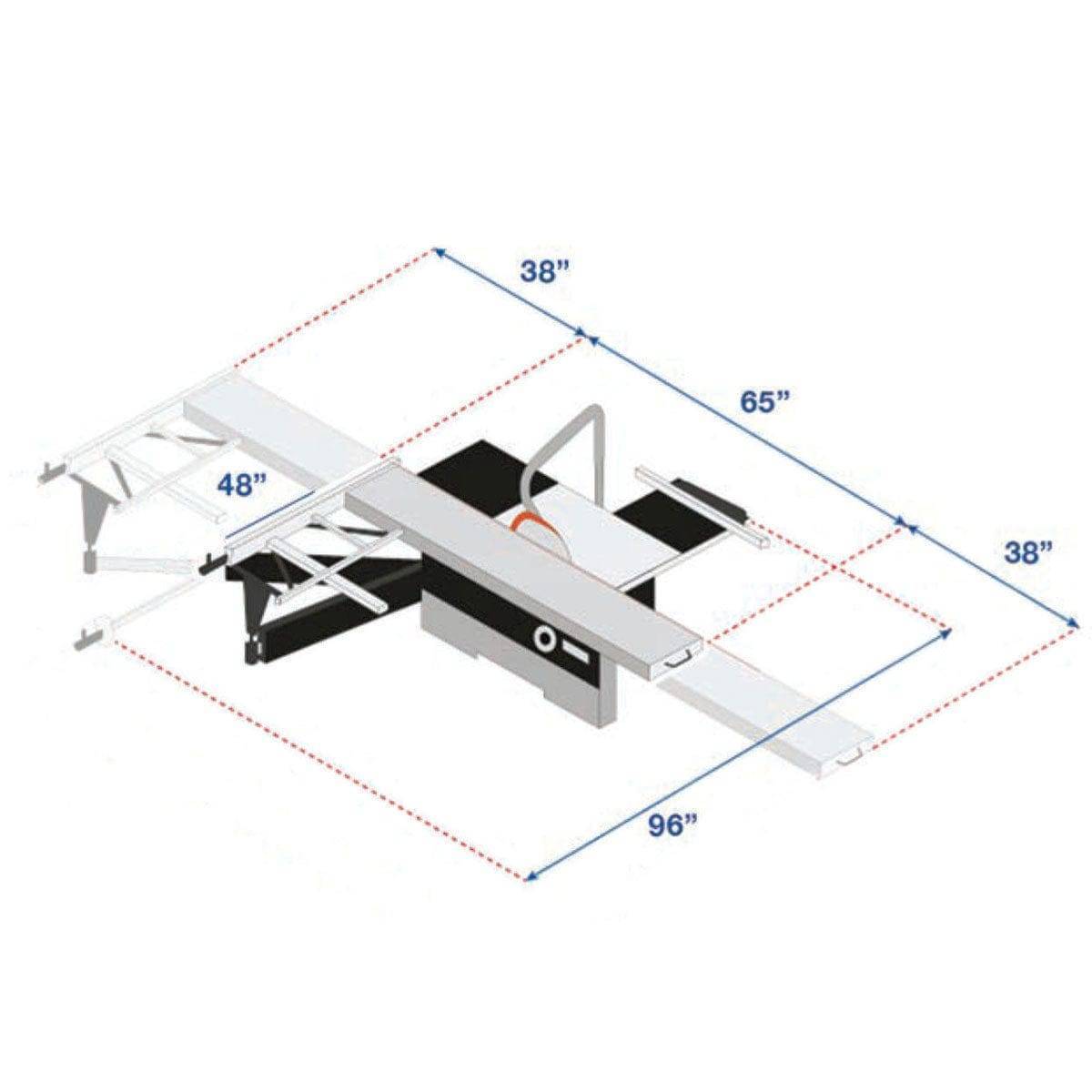

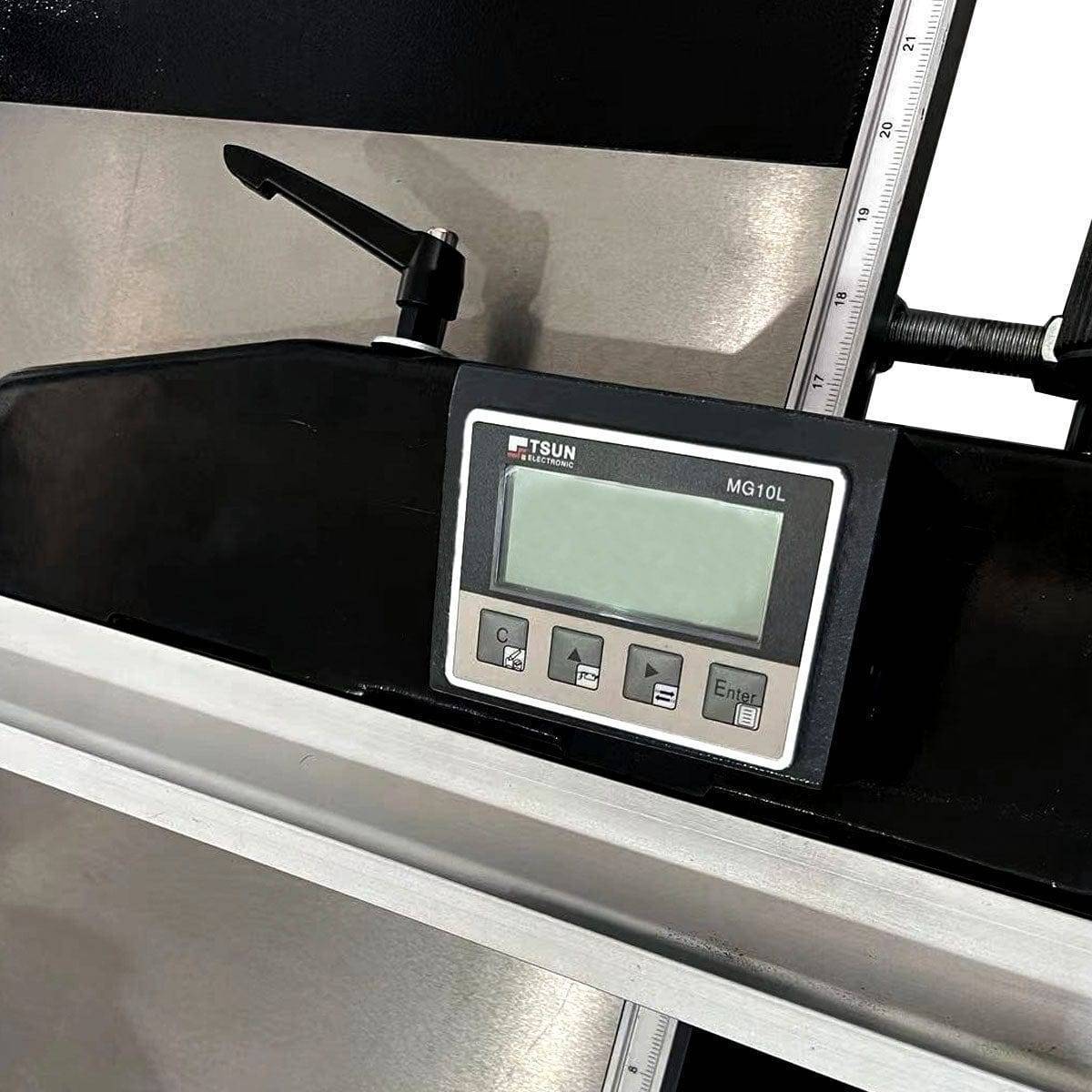

When you just can’t fit a full 10’ slider in your shop turn to Maksiwa, they are always listening to woodworkers, which is why they are introducing their smallest sliding panel saw to you. The new BMS.1600.IR is almost half of the size with the same 5 HP and blade capacity as the bigger BMS.3200.IR! Specifications Sliding Table Dimensions: 63″ x 14″ Main Table with Supporting Table: 31.5″ x 40″ Crosscut Fence Collapsed: 50″ Crosscut Fence Max Extended: 85″ Rip Fence Bar Solid Steel Micro Polished: 1″ Emergency Button Crosscut Fence Flip Stopper Max Tilt: 45 Degrees Max Depth Cut: 3″ Max Cutting Length: 62″ Max Cutting Height with Blade at 90 Degrees: 3.5″/90mm Max Cutting with Blade at 45 Degrees: 2.4″/62mm Machine Dimension (collapsed): 66″L x 98″W x 42″H Main Side Dust Port: 4″ Motor: 5HP Motor, 1PH 220V Main Motor Blade Speed: 4000 RPM Scoring Motor: 1HP, 6 Amp, 0.55KW Scoring Motor Blade Speed: 8000RPM Main Blade Diameter:305mm Main Blade Arbor Size: 30mm Scoring Blade Arbor Size: 20mm New Design, more Ergonomic, Improved Construction and Materials Digital Rip Fence Read Out Dual Blade Covers (straight and bevel cuts New Sheet Clamps, Wood Stopper and Slider Handle Integrated Dust Collection Exhaust on Swing Away Arm 2 Flip Stops Adjustable Leveling Feet Digital Angle Display 90 degrees to 45 degrees Rip Fence with Micro Adjustment Set of Blades included (Main 12″ & 4-3/4″ Scoring Sliding Table Mechanism: Accepts a Dado Blade Shipping / Billing Information This product ships direct from the manufacturer: Your order will ship in approximately 5-7 business days. This product is considered special order. Your account will be charged when you place your order. Express or overnight shipping is not available for this product. Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries. Any suspected damage must be reported on bill of lading for all freight items Return Information If you have a return issue, contact Woodcraft Supply customer service @ 1-800-535-4482 for return details. All Returns must have a RGA or will be refused. Customer is responsible for all return freight. Warranty Information Maksiwa warranty’s Power Tools for 2 years. If you have a warranty question, please contact Maksiwa Customer Service at 754/2276096
