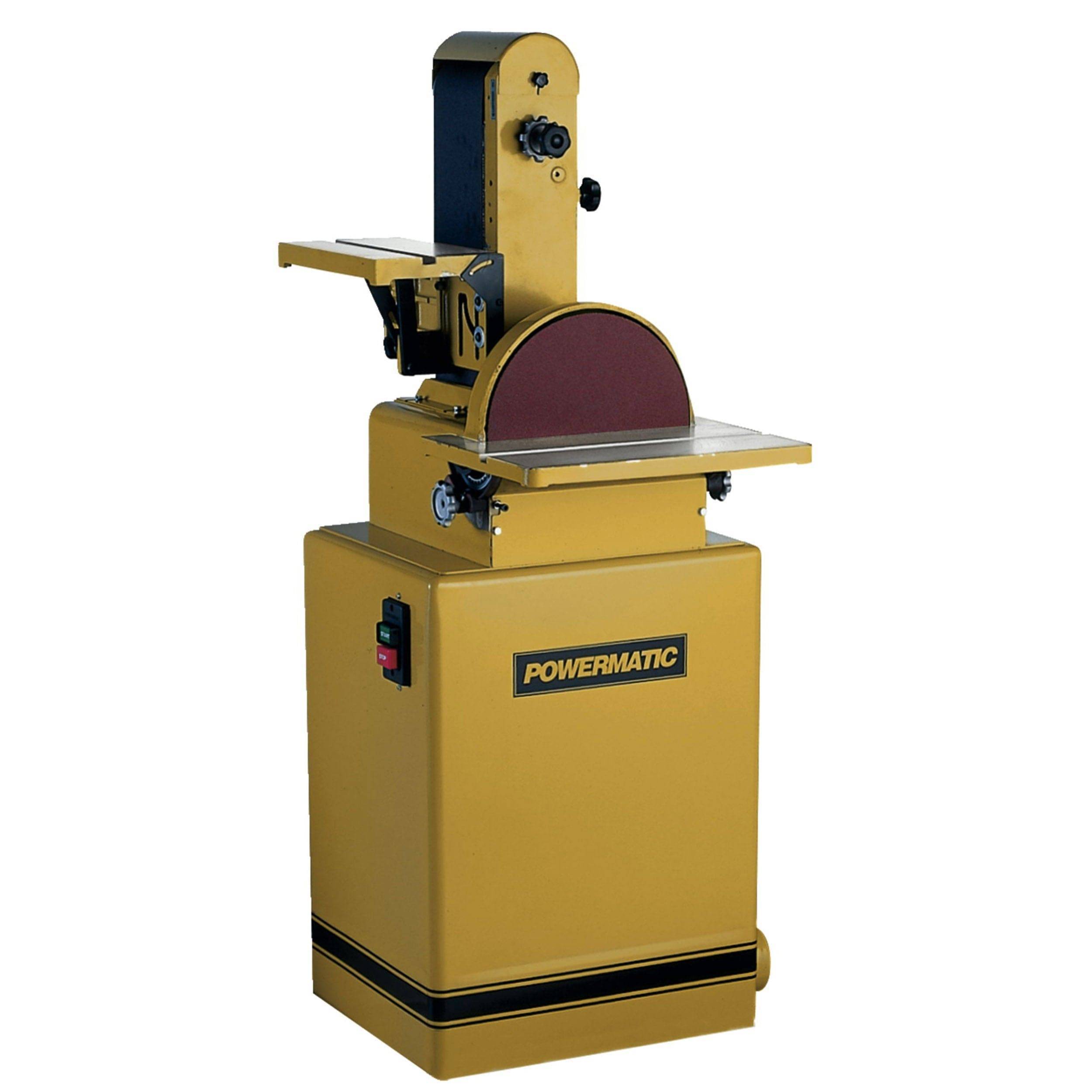

6″ x 48″ Belt / 12″ Disc Sander – 2 HP 3 Ph 230/460V – 31A

Loaded with features, the 31A from Powermatic can tackle the most demanding tasks. Full cast iron construction allows both metal and woodworking to be done on the same machine and the Integral Dual Dust Port keeps both belt and disc portions clean, extending abrasive life. The articulating table mounted on the 6″ x 48″ belt sander head can be used vertically, horizontally, or angled to accommodate diverse jobs. The belt head has an indexing pin with stops at 0, 45° and 90° and the head lock allows use at any angle in-between. Removing the top guard allows contour sanding and the cast iron tables with miter gauge slots and positive stops make set-up fast, accurate, and simple for any angle. Features: • Multi-position belt head locks at any angle from 0° to 90°; includes indexing pin for 0, 45°, and 90° stops • Belt and disc tables are precision ground cast iron with miter slots • Belt table tilts down to 45°, and can be set for beveled and mitered angle sanding • Full cast iron platen with solid crowned aluminum drums for smooth sanding belt movement and support • 12″ disc is balanced for flat, even coverage Specifications: Amps : 7/3.5 Base Size (in) : 20W x 17-1/4D x 27-1/2H Belt Size (L x W/in) : 48 x 6 Belt Speed (SFPM) : 2410 Belt Table Size (L x W/in) : 13-1/4 x 7-1/2 Belt Table Tilt (deg.) : 45 down Disc Diameter (in) : 12 Disc Speed (RPM) : 2375 Disc Table Size (L x W/in) : 17-1/4 x 9 Disc Table Tilt (deg.) : 15 up, 45 down Dust Collection Minimum CFM Required : 400 Dust Port Diameter (OD/in) : 4 Height (in) : 54.5 Length (in) : 24 Model Number : 31A Motor HP : 2 Motor Phase : 3 Motor Voltage : 230/460 Net Weight : 247 pound Overall Dimensions : 24 x 31-1/4 x 54-1/2 Part Number : 1791292K Prewired : Prewired 230, magnetic switch Sanding Arm Locking Positions (deg.) : 0, 45, and 90 Table Working Height (disc/belt/in) : 34 disc, 36 belt Width (in) : 31.25 Shipping / Billing Information All shipments must be inspected and any damage reported within 3 days of receipt. Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges. This product ships direct from the manufacturer: Your order will ship in 4 -7 approximately business days. This product is considered special order. Your account will be charged when you place your order. Express or overnight shipping is not available for this product. Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries. Return Information All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions. Warranty Information Because this item is purchased and shipped directly from the manufacturer, their warranty supersedes any offered by Woodcraft.
