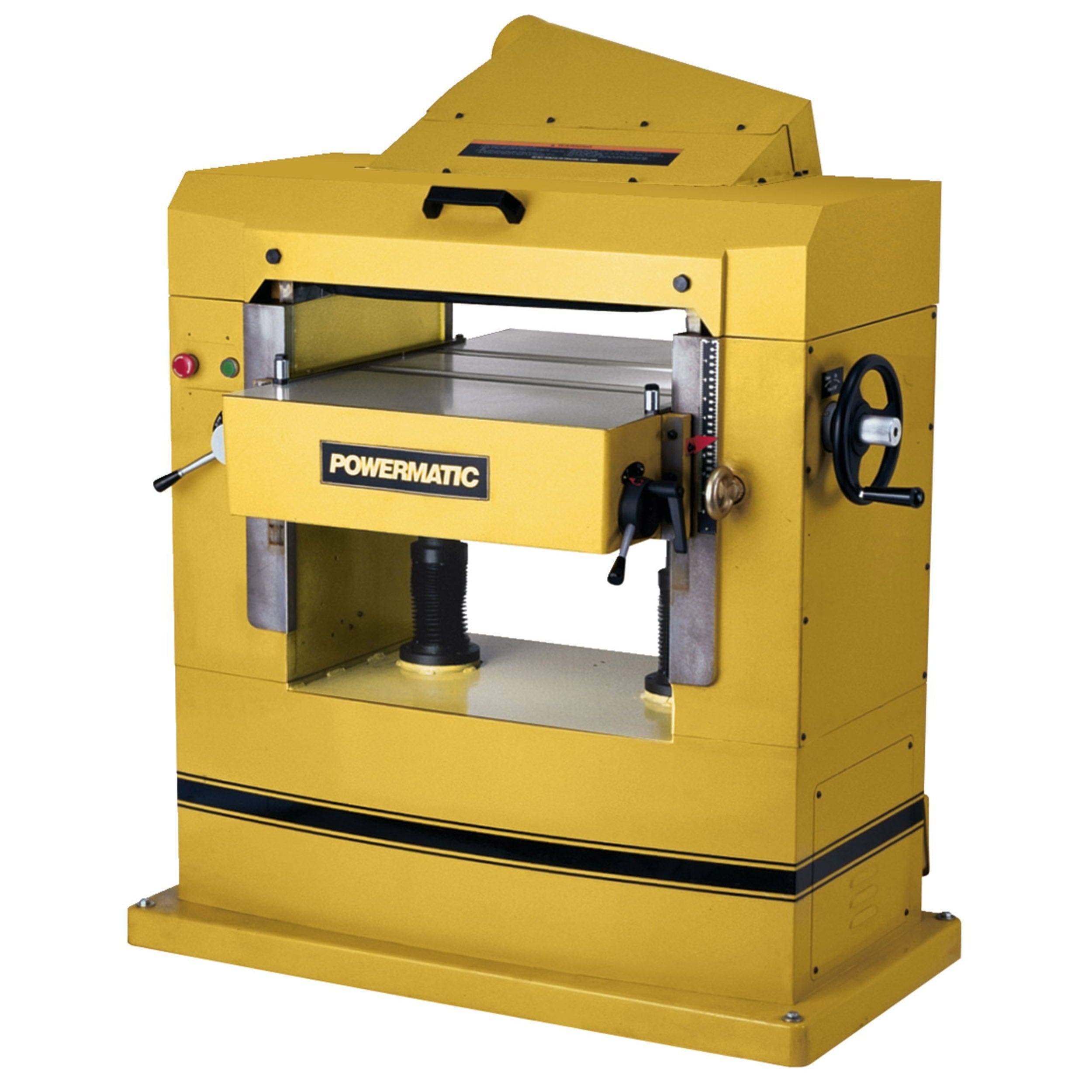

22″ Planer – 7-1/2 HP 1 Ph 230V – Straight Knife – 201

This 1,300 lb. heavy-duty cast iron planer offers rock solid rigidity and accurate planing for years to come. The hinged top allows easy access to the rollers and knives. The hood comes standard with a 5″ dust port for easy attachment to any dust collection system. The cutterhead is complete with four high speed steel knives and turns at 4,800 rpm producing 19,200 cuts per minute. The anti-kick back fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The well designed infeed and outfeed rollers are fitted with roller bearings for long roller life. The sectional infeed and chip breaker are specially designed to allow multiple boards to be planed at the same time. The adjustable bed roller facilitates both rough and finish planing. The solid steel outfeed roller is machined with small serrations to insure a smooth finish yet provide positive feeding. The two-speed gearbox with machined detents is quickly changed up front when switching from rough to finish work. You may easily raise the massive ribbed cast iron, ground finished table 1 /16 with each turn of the hand wheel. The model 201 is available with a 7-1 /2 horsepower, 3-phase or single-phase motor. This planer is perfect for the small to medium shop with continuous planing requirements. Specifications: Cast iron 1300 lb. construction for solid performance without vibration 2 feed speeds – 20/30 fpm – accommodates rough and fine finish work Segmented infeed roller with sectional chipbreaker allows multiple board planing 4-knife head offers 19,200 cuts per minute and widest capacity in its class Roller bearing-mounted feed rollers for long life Adjustable bed rollers allow smooth feeding of rough or finished workpieces Oversized cast iron table travels on 2 large lead screws for heavy duty support Dust collection chute with 5″ port Adjustable foot pads Knife setting gauge Tool kit (6, 8, and 10mm wrenches, 12-14mm, and 22-24mm combination wrenches) Bed Rollers Adjustable from Front : 2 Cuts Per Minute : 19,200 Cutterhead Diameter (in) : 3-1/4 Cutterhead Speed (RPM) : 4800 Dust Collection Minimum CFM Required : 900 Dust Port Diameter (OD/in) : 5 Feed Rate (FPM) : 20 and 30 Height (in): 59 Length (in): 42 Maximum Depth of Cut (in) : 3/16 Maximum Planing Thickness (in) : 9-1/4 Maximum Planing Width (in) : 22 Minimum Planing Length (in) : 10 Motor HP : 7-1/2HP Motor Phase : 1Ph Motor Voltage : 230V Net Weight : 1,350 pound Number of Knives : 4 Number of Speeds : two Outfeed Roller Diameter (in) : 3 Overall Dimensions : 42 x 49 x 59 Part Number : 1791261 Readout Scale : mm/in Segmented Infeed Roller Diameter (in) : 3 Table Height Adjust Manual : 1 Turn = 1/16 Table Size (in) : 32-1/4 x 24 Table Support : 2-column Tool Supplied : Yes Width (in): 49 Shipping weight 1,430 lb. Shipping / Billing Information All shipments must be inspected and any damage reported within 3 days of receipt. Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges. This product ships direct from the manufacturer: Your order will ship in 4 -7 approximately business days. This product is considered special order. Your account will be charged when you place your order. Express or overnight shipping is not available for this product. Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries. Return Information All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions. Warranty Information Because this item is purchased and shipped directly from the manufacturer, their warranty supersedes any offered by Woodcraft.
